Transfer box.. A new version...
| Author |
Message |
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|

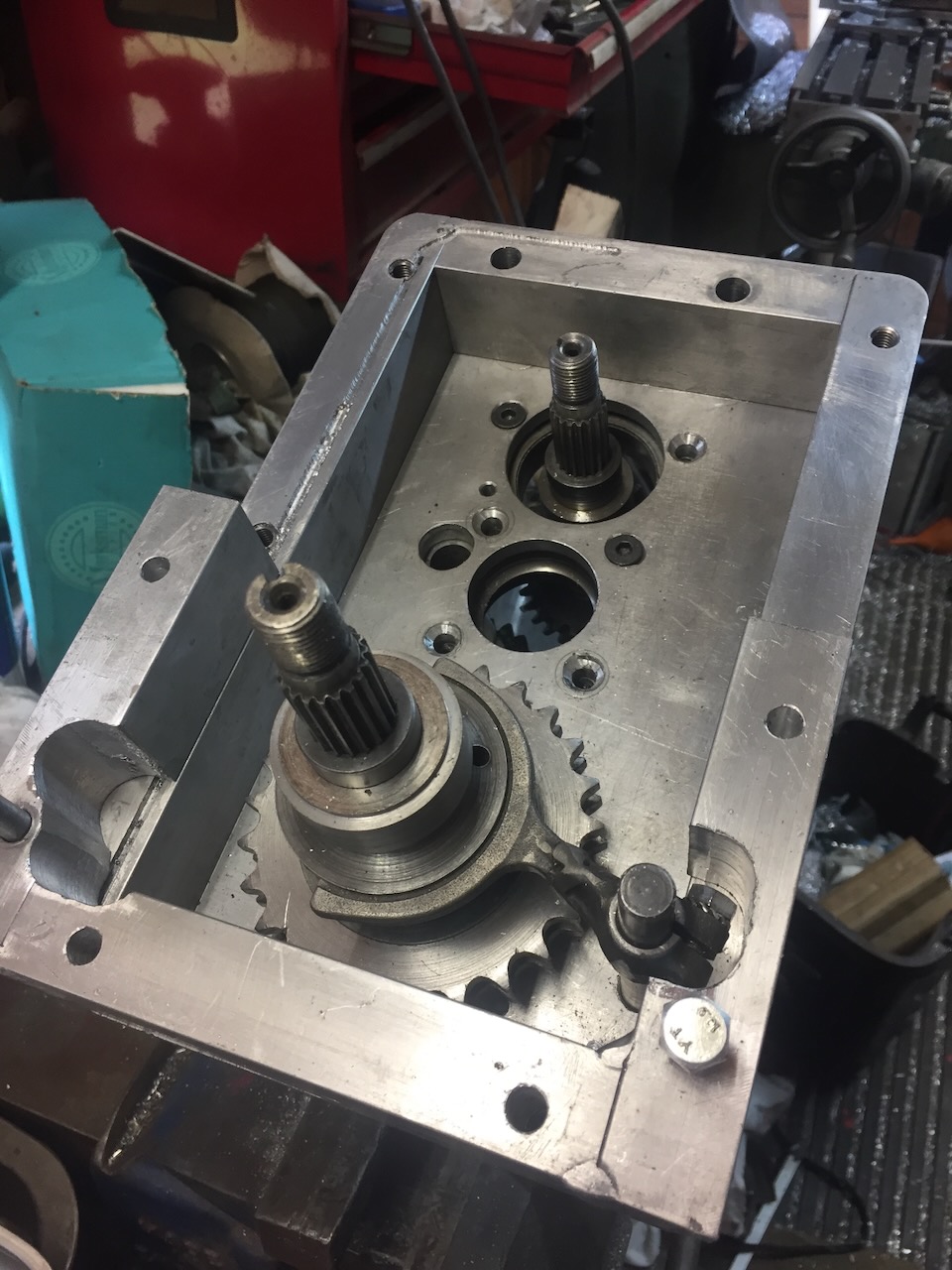

 Re: Transfer box.. A new version... Output shaft selector mechnanism...please ignore the cock-up bottom left  . Attachment:
IMG_1860.jpeg [ 252.92 KiB | Viewed 5696 times ]
Attachment:
IMG_1862.jpeg [ 181.66 KiB | Viewed 5696 times ]
|
| June 20th, 2024, 3:21 pm |
|
|
|
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm
Posts: 2193
Location: South-Limburg
|
Re: Transfer box.. A new version... It's no cockup it's an extra oil reservoir.
|
| June 20th, 2024, 5:28 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version...  .........like Half-Full/Half-Empty
|
| June 20th, 2024, 5:56 pm |
|
|
|
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am
Posts: 497
Location: Korpilahti, Finland
|
Re: Transfer box.. A new version... With this small extension of gearbox, the original amount of oil might be need to put two or three times..?
Looks very nice, waiting to see it completed...
|
| June 20th, 2024, 7:15 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Good point, maybe an extra 0.5 litre?
|
| June 21st, 2024, 8:35 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Selector interlock...Citroen copy  Attachment:
P1010902.jpeg [ 224.2 KiB | Viewed 5623 times ]
Attachment:
P1010904.jpeg [ 176.81 KiB | Viewed 5623 times ]
|
| June 21st, 2024, 7:48 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Spent few hours making the rear bearing retainer but its a cockup as the 7mm bolt holes are not in the right plac- (-/+2mm) ( Attachment:
IMG_1866.jpeg [ 255.59 KiB | Viewed 5572 times ]
But fitted and "O-Lite" bush for the selector rod:) Attachment:
IMG_1867.jpeg [ 232.03 KiB | Viewed 5572 times ]
|
| June 23rd, 2024, 1:43 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... The old grey matter gets confused..... Took is all to pieces, CLEANED all the surfaces and bolts and threads. Re-assembled carefully.... All all fits and rotates :O Will look at the "athsetics" and radius the corners and edges ec.., Attachment:
IMG_1868.jpeg [ 282.87 KiB | Viewed 5559 times ]
|
| June 23rd, 2024, 3:29 pm |
|
|
|
Geert
Firing on two.
Joined: July 10th, 2010, 12:35 pm
Posts: 1155
Location: Magyarország
|
Re: Transfer box.. A new version... subarupete wrote: Took is all to pieces, CLEANED all the surfaces and bolts and threads.
Re-assembled carefully....
All all fits and rotates :O
SUPER !
_________________
'T is een kwestie van geduld.........
Ez a türelem kérdése.........
|
| June 24th, 2024, 6:25 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Must make a list of parts to make or finish......
Today drilled and tapped M16 x 1.5 and fitted a sump drain plug..
Attachments:
IMG_1870.jpeg [ 211.17 KiB | Viewed 5448 times ]
|
| June 25th, 2024, 7:19 pm |
|
|
