subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|

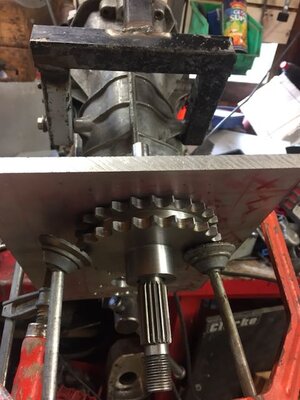

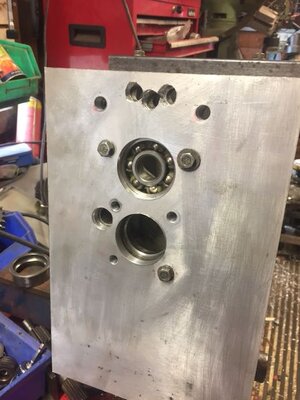

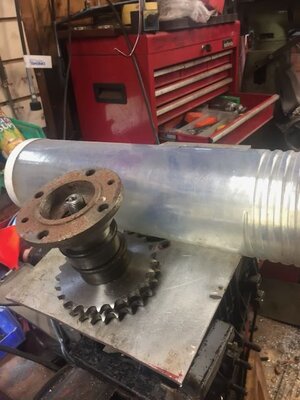

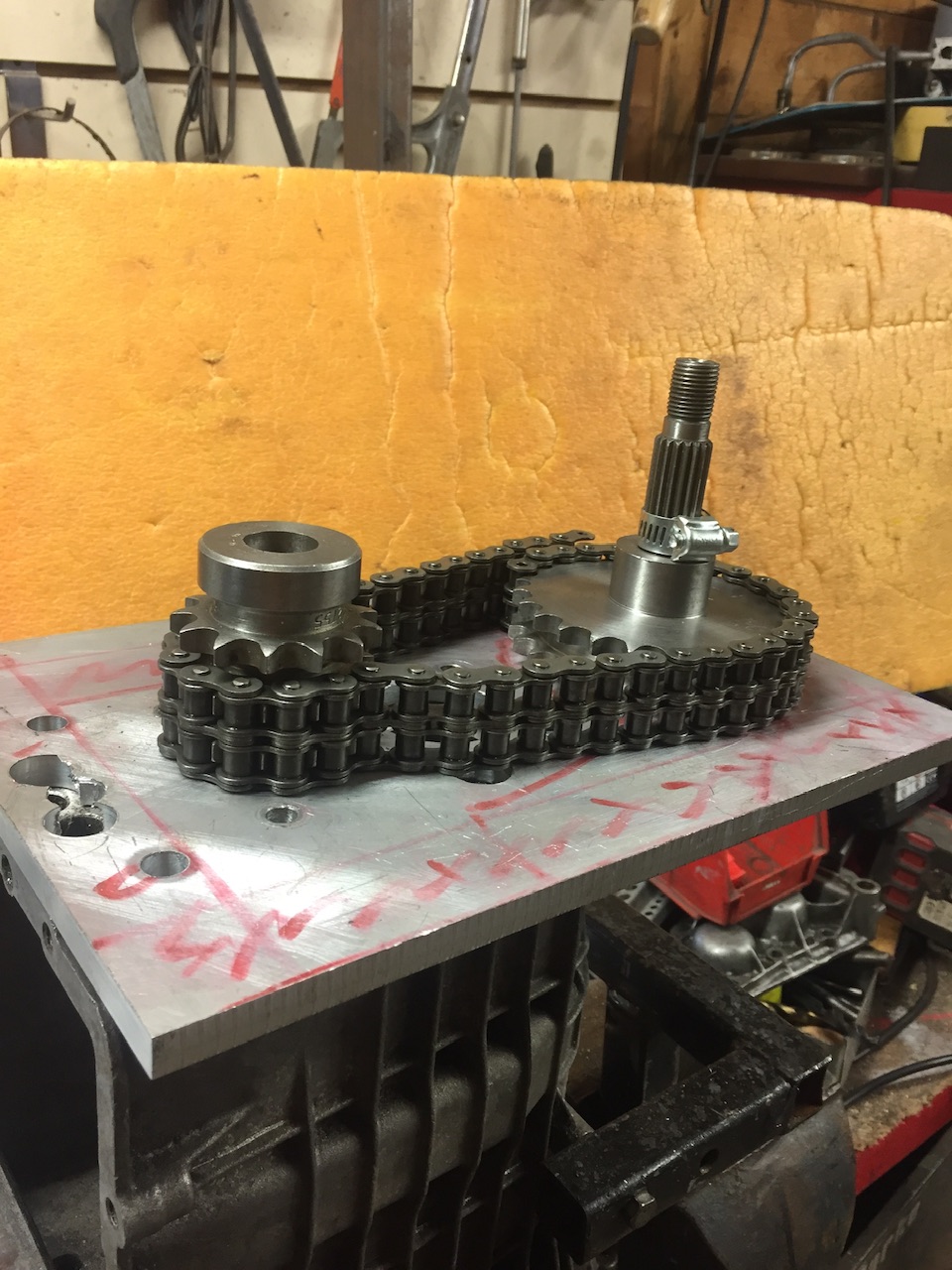

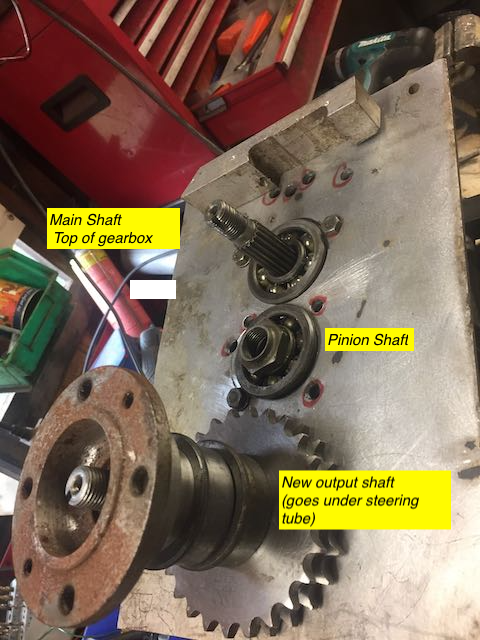

 Transfer box.. A new version...
Any interest I will post more info. Attachment:
2.jpg [ 929.67 KiB | Viewed 25059 times ]
Attachment:
3.png [ 521.78 KiB | Viewed 25059 times ]
Attachment:
4.jpeg [ 74.34 KiB | Viewed 25059 times ]
|
October 23rd, 2023, 12:45 pm |
|
 |
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm Posts: 2168 Location: South-Limburg
|
 Re: Transfer box.. A new version...
With chain drive?
|
October 23rd, 2023, 8:34 pm |
|
 |
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am Posts: 497 Location: Korpilahti, Finland
|
 Re: Transfer box.. A new version...
Chain drive isn't uncommon, some offroad-cars has them on transfer box. Range Rovers (not all), Land Cruisers, some American made...
Interested about? Yes, a lot. Like to see the build photos...
Have been thinking how to make a transfer box with centre diff. Liked very much of "three diff transmission" at six years saga with couple of Range's, and still don't like the Land Rover Series transferbox without centre diff. Have some sketch, but no real solution to make yet... Full time 4wd is what I like, especially with manual diff lock on centre diff, with viscous wasn't same at all...
|
October 23rd, 2023, 10:11 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|
 Re: Transfer box.. A new version...

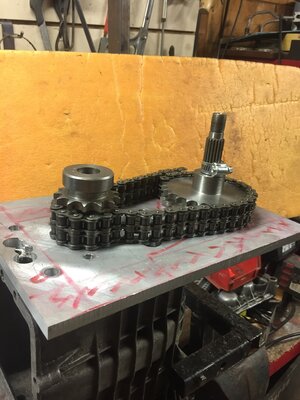

Using industrial duplex chain, 08B size, Looked at automotive “Silent chain” but can’t get the ratios, and new parts are very expensive. Will have a step down ratio (13:25) and dog clutch at the gearbox end, Rear cut down Diff / prop always connected. Waiting on some “alu” plate at the moment. Will post some more pics….. Cheers Peter
|
October 24th, 2023, 9:28 am |
|
 |
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am Posts: 1620 Location: Exeter, Devon
|
 Re: Transfer box.. A new version...
For us non 4x4 peeps, what is a transfer box?
_________________ If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
October 24th, 2023, 7:29 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|
 Re: Transfer box.. A new version...
Takes the drive from the front gear box to the rear Diff.
|
October 24th, 2023, 7:38 pm |
|
 |
lpgo
Firing on 1-2 Spark
Joined: November 8th, 2009, 5:42 pm Posts: 2847 Location: NL
|
 Re: Transfer box.. A new version...
Why don't you use the output shaft, to hook you chain to, like a mehari 4x4 does to. Much less power evaporates and you can directly connect to your reardiff what you already have made.
_________________
Russell wrote: Hi Geo, you've been one of the sites biggest attractions in recent years. Russ
|
October 28th, 2023, 5:10 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|
 Re: Transfer box.. A new version...

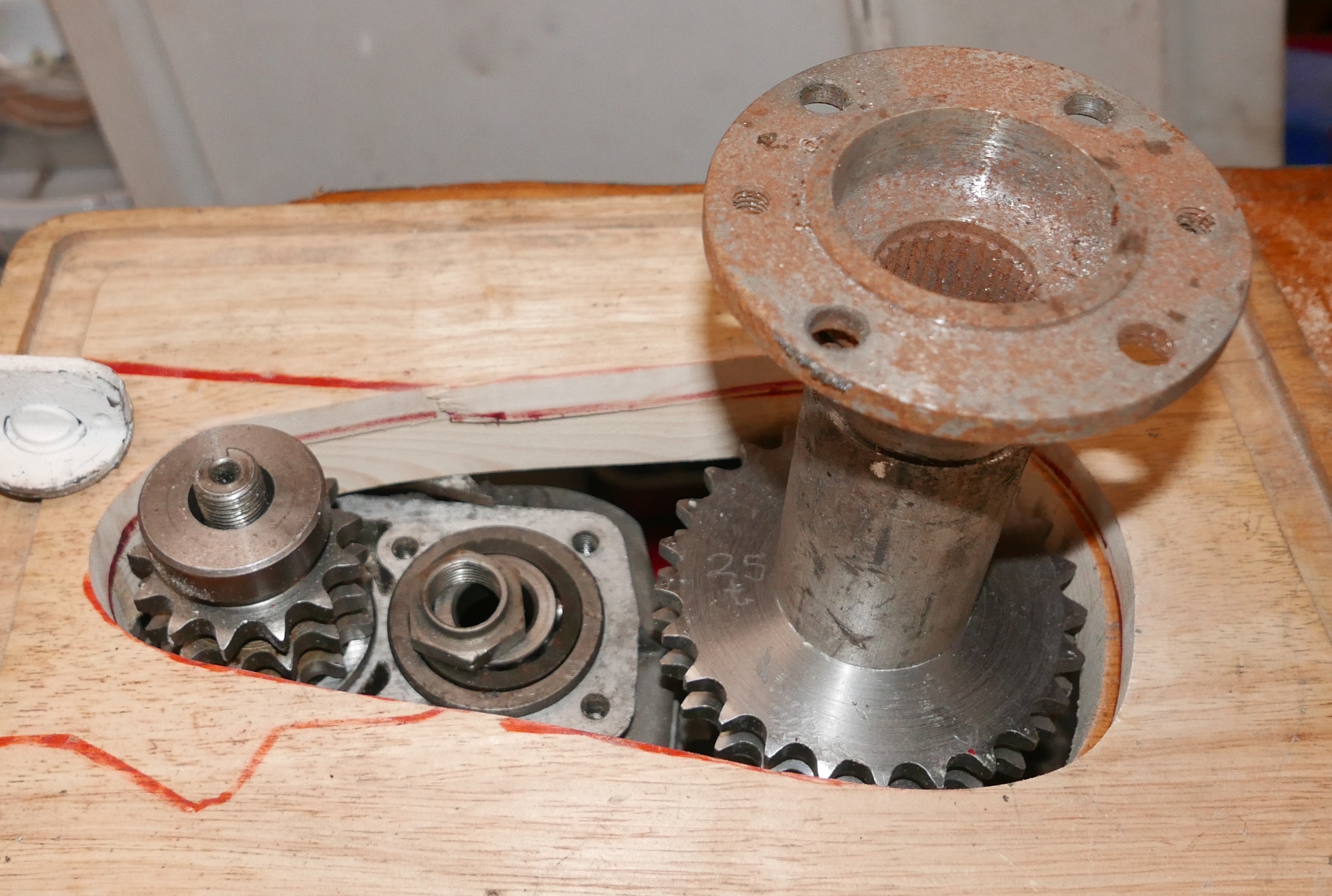

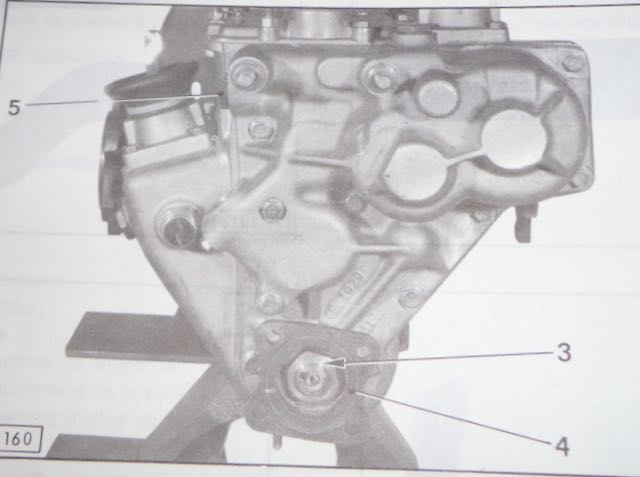

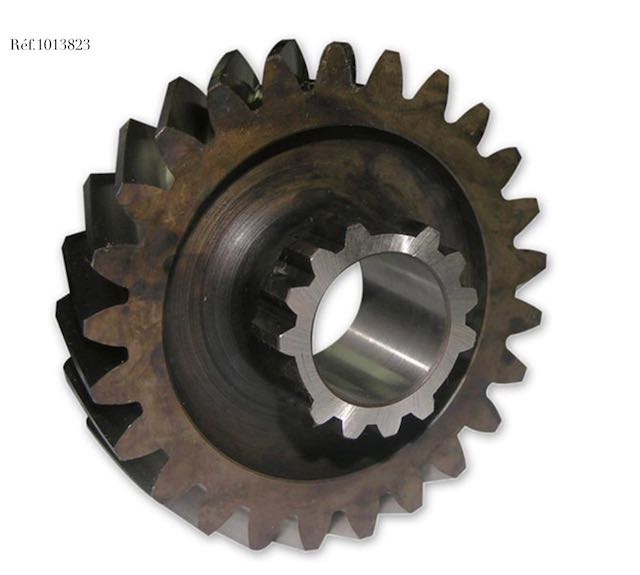

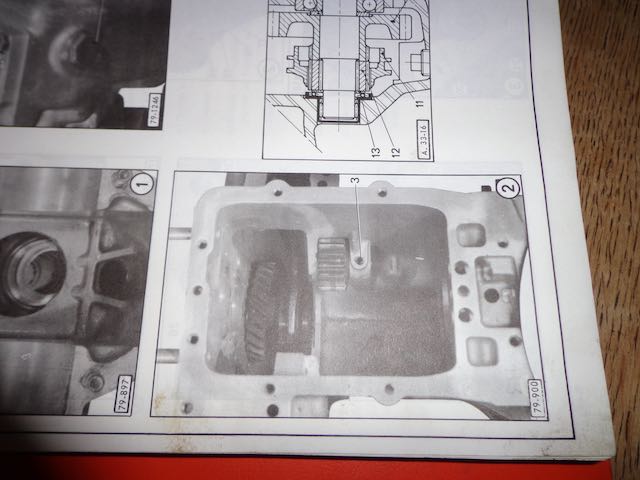

Hi Lpgo, The Steering rack is in the way! See Mehari documentation, extra gear and shaft below the pinion shaft. Attachment:
Mehari 4x4 - 1 of 1 (1).jpeg [ 42.02 KiB | Viewed 24935 times ]
Attachment:
Mehari 4x4 - 1 of 1.jpeg [ 31.03 KiB | Viewed 24935 times ]
Attachment:
Mehari 4x4 - 1 of 1 (2).jpeg [ 28.11 KiB | Viewed 24935 times ]
ps The Mehari 4x4 special gear and shaft etc are available at about €2000+ cheers
|
October 29th, 2023, 9:08 am |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|
 Re: Transfer box.. A new version...
Back cover machined, fits well and retains the bearings properly. now to fit the extra shaft housing. Attachment:
4x4 - 1 of 1.jpeg [ 44.49 KiB | Viewed 24906 times ]
Attachment:
4x4 - 1 of 1 (1).jpeg [ 45.56 KiB | Viewed 24906 times ]
|
October 30th, 2023, 12:40 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2243 Location: Near Monmouth
|
 Re: Transfer box.. A new version...
Chain arrived , try out for clearances and a rear cover. Attachment:
IMG_1355.jpeg [ 293.94 KiB | Viewed 24837 times ]
Attachment:
IMG_1352.jpeg [ 306.82 KiB | Viewed 24837 times ]
|
November 2nd, 2023, 2:51 pm |
|
|
