Make Your Own ....2CV.... 4x4
Author |
Message |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4
Good point:)
|
July 8th, 2017, 7:24 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

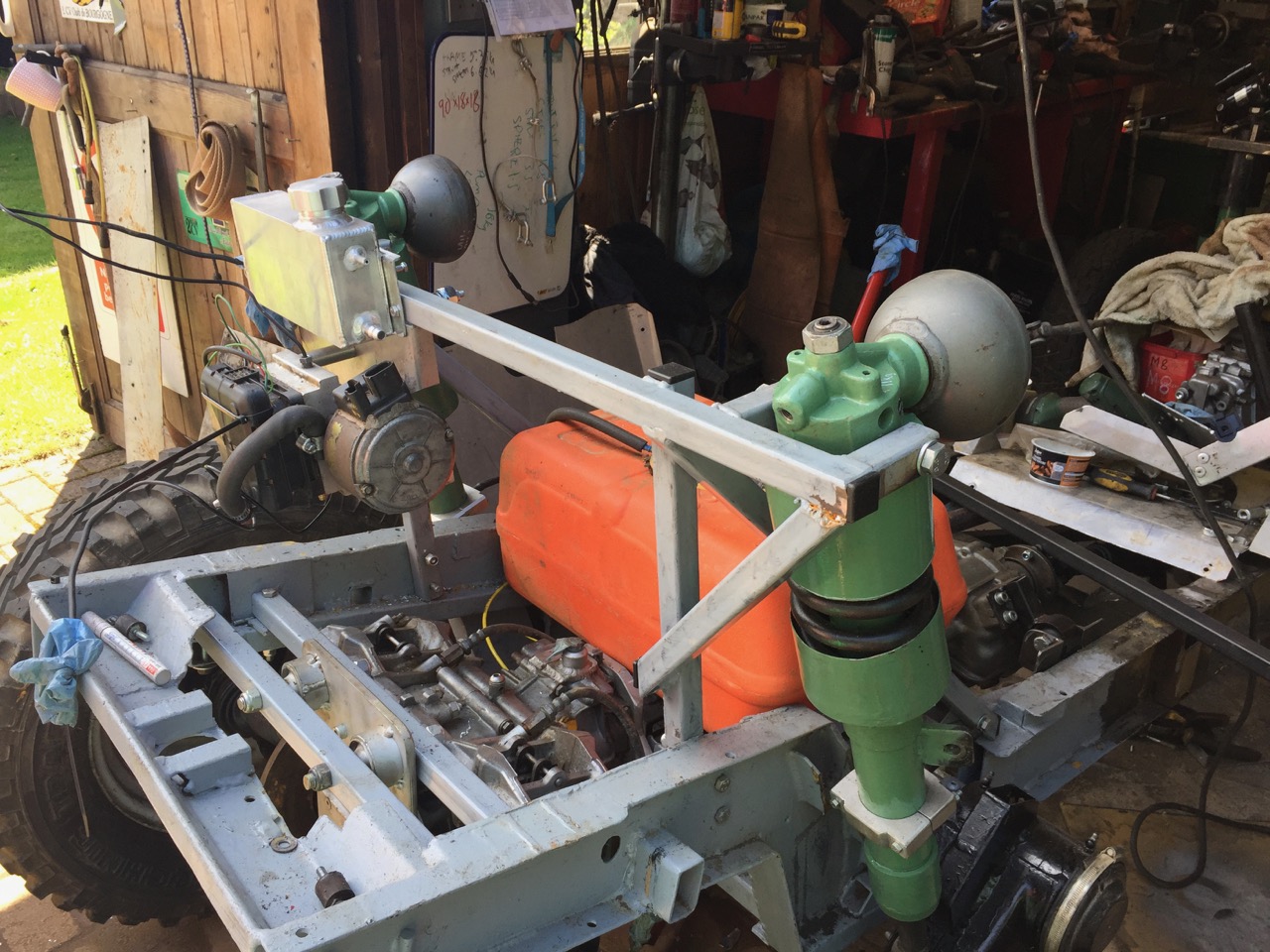

Forgot about the Fuel Tank, so no 3rd seat. Also fitted LDS tank and pump, high up as they are Splash-proof but not Water-proof. Attachment:
IMG_1179.jpg [ 376.73 KiB | Viewed 4947 times ]
|
July 12th, 2017, 4:27 pm |
|
 |
rob massey55
Firing on two.
Joined: December 21st, 2014, 7:33 pm Posts: 877 Location: Rhayader Mid Wales
|
 Re: Make Your Own ....2CV.... 4x4
Starting to remind me of something... http://www.spacekids.co.uk/rover/Coming together Pete.
|
July 12th, 2017, 8:03 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

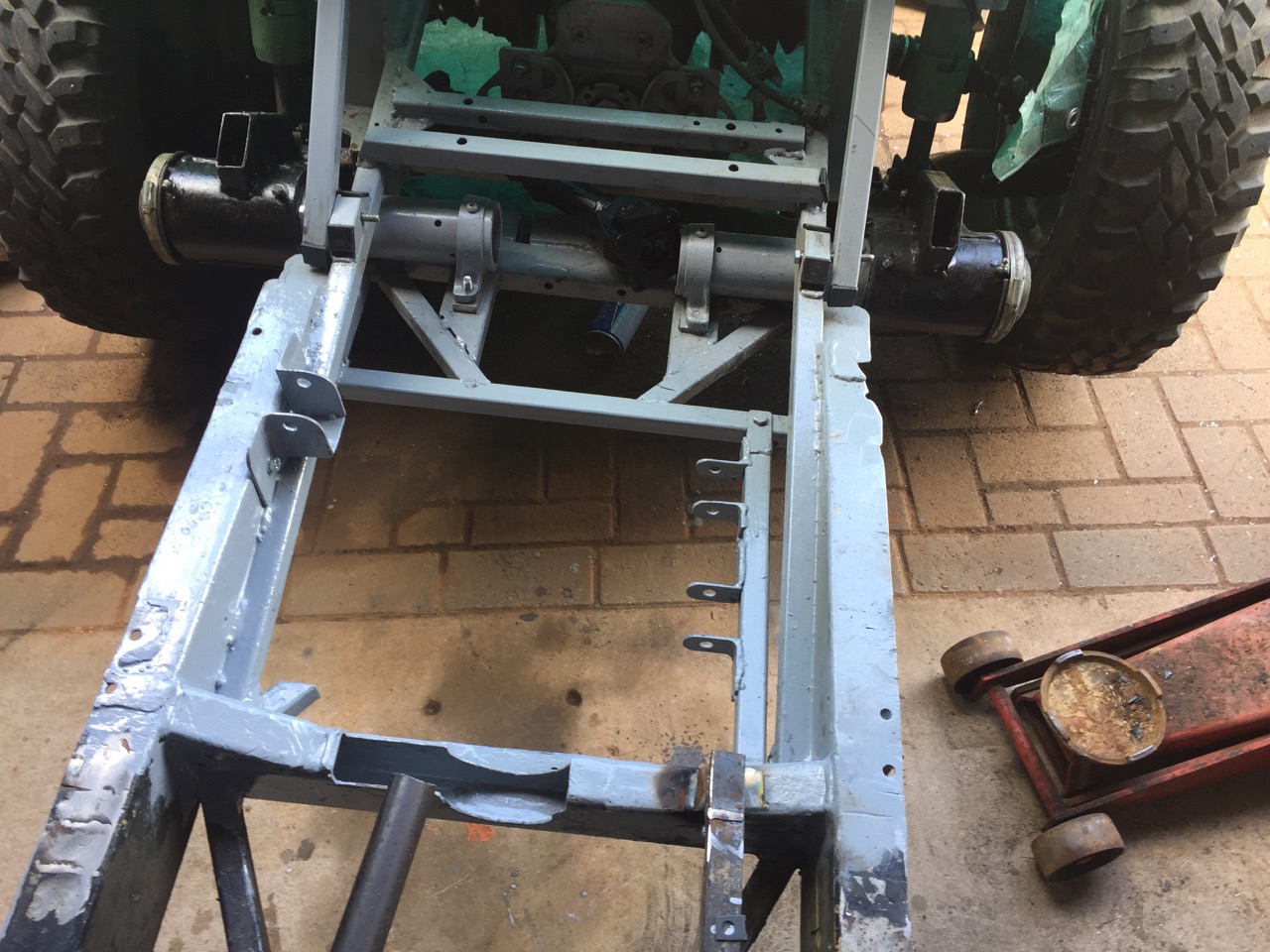

Finished mounting brackets for the Transfer Box and painted the chassis. Attachment:
IMG_1189.jpg [ 317.29 KiB | Viewed 4926 times ]

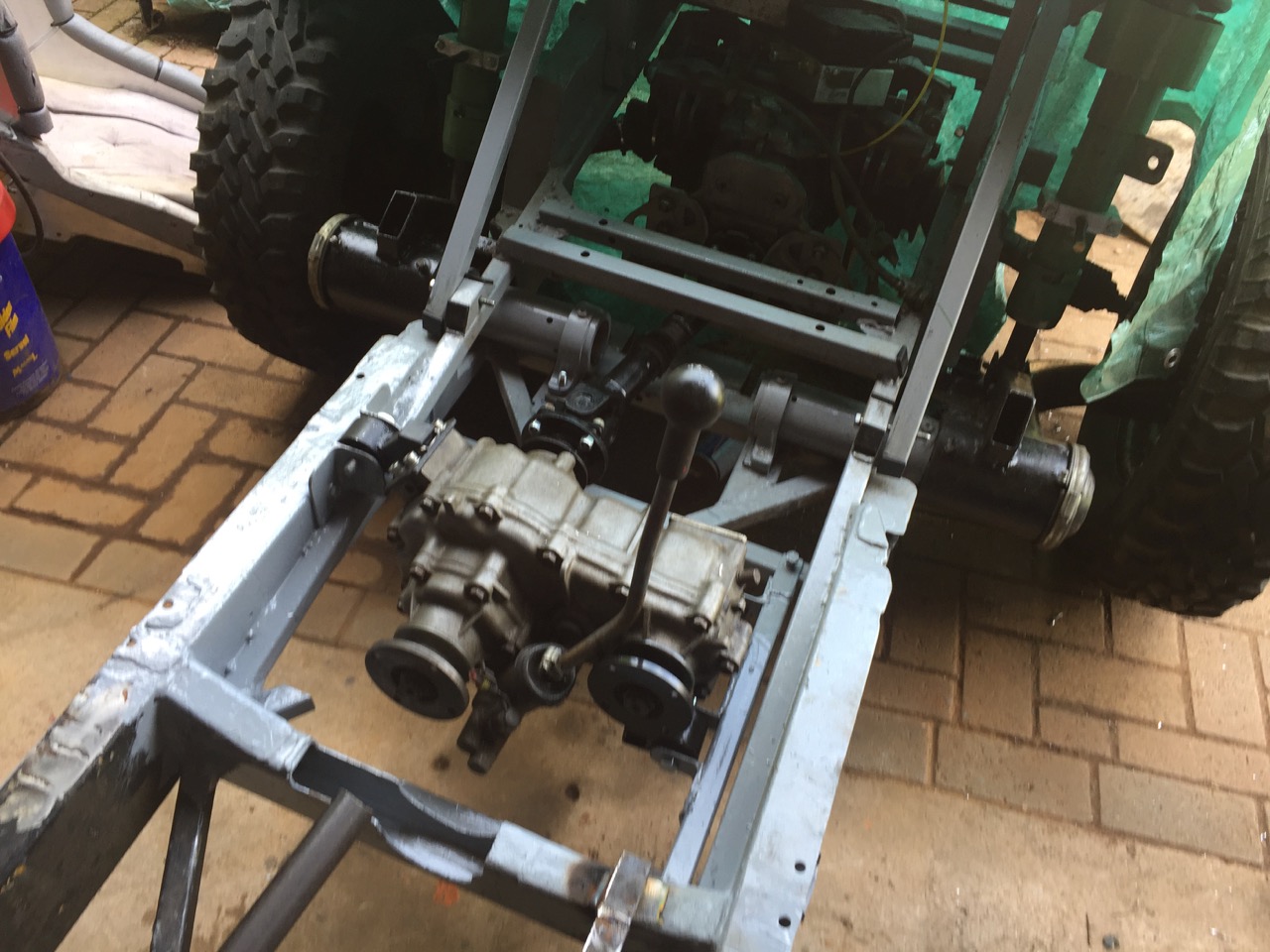

Transfer box fitted. Attachment:
IMG_1191.jpg [ 259.78 KiB | Viewed 4926 times ]
ps Rob Mine has not been designed to "un-fold" (see Apollo vids). It may "fold" but for a different reason
|
July 14th, 2017, 4:59 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

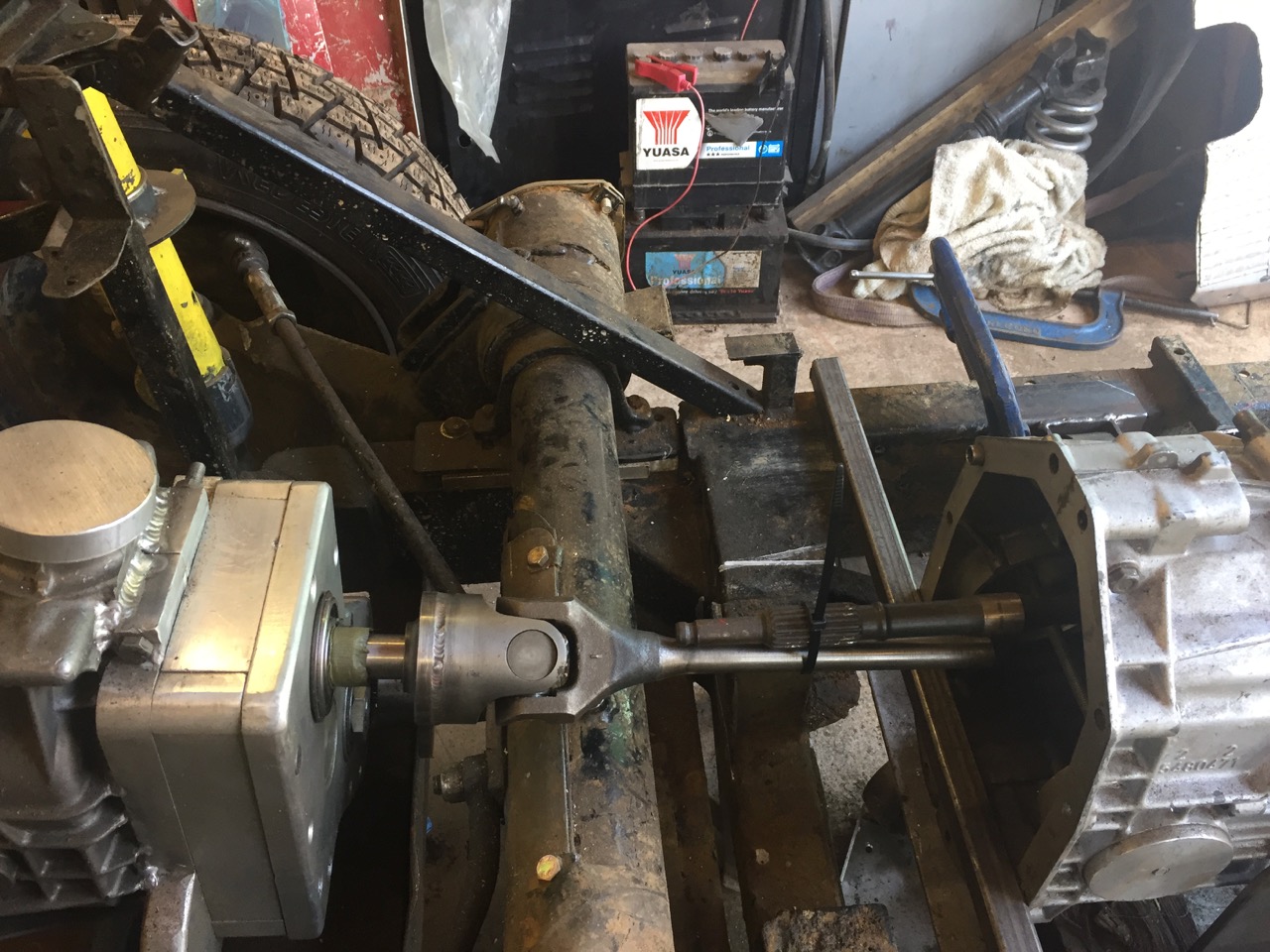

Now comes the part which causes some worries, the alignment of the Engine/Clutch/Diff casing with the remote gearbox. Measurements - Try Out. Engine is set as low as can be in the chassis, Clutch shaft with UJ clears the top of the cross tube by 10mm. The front prop shaft clears the tie-rod and cross tube by 10mm. The Kawasaki prop shaft is slopes down a little, because the back of the front diff box sits down by 15/20mm in relation to the engine. I will see if I can drop the engine down 15/20mm to compensate, with out the sump protruding below the chassis line. It should all fit together and work Attachment:
IMG_1200.jpg [ 419.5 KiB | Viewed 4899 times ]
Attachment:
IMG_1201.jpg [ 384.9 KiB | Viewed 4899 times ]
Attachment:
IMG_1202.jpg [ 315.57 KiB | Viewed 4899 times ]
Attachment:
IMG_1203.jpg [ 344.79 KiB | Viewed 4899 times ]
|
July 17th, 2017, 3:15 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

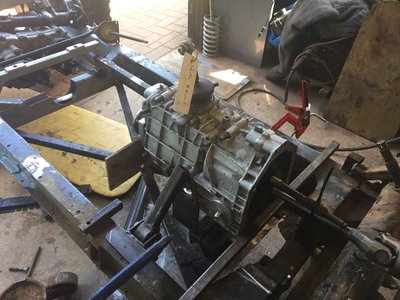

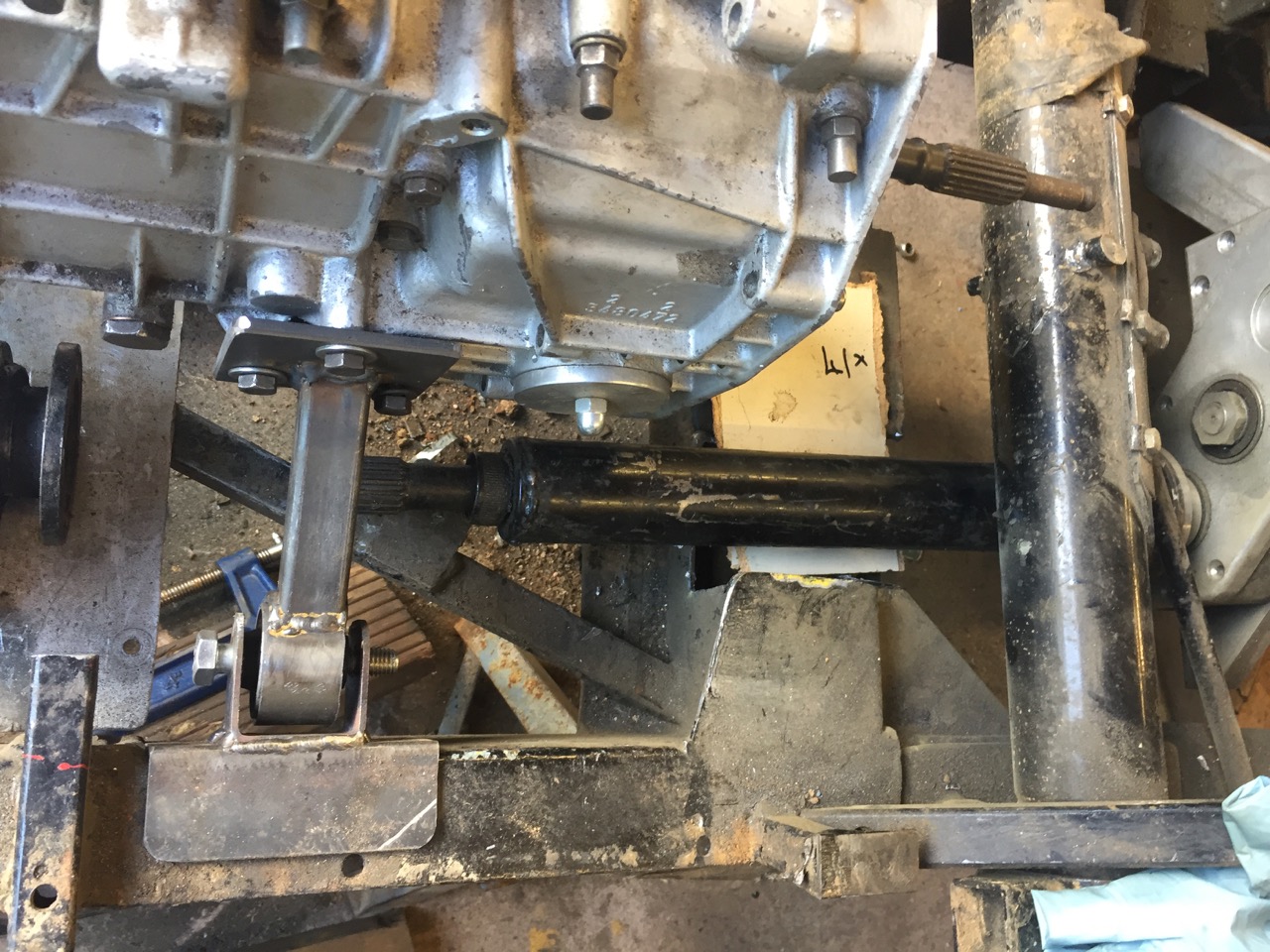

Gear Box Brackets. As the casing is LN, will re-use those mounting points at the sides. Attachment:
IMG_1205.jpg [ 287.67 KiB | Viewed 4885 times ]

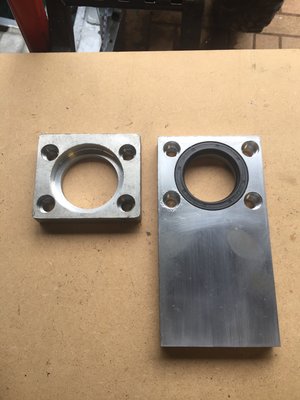

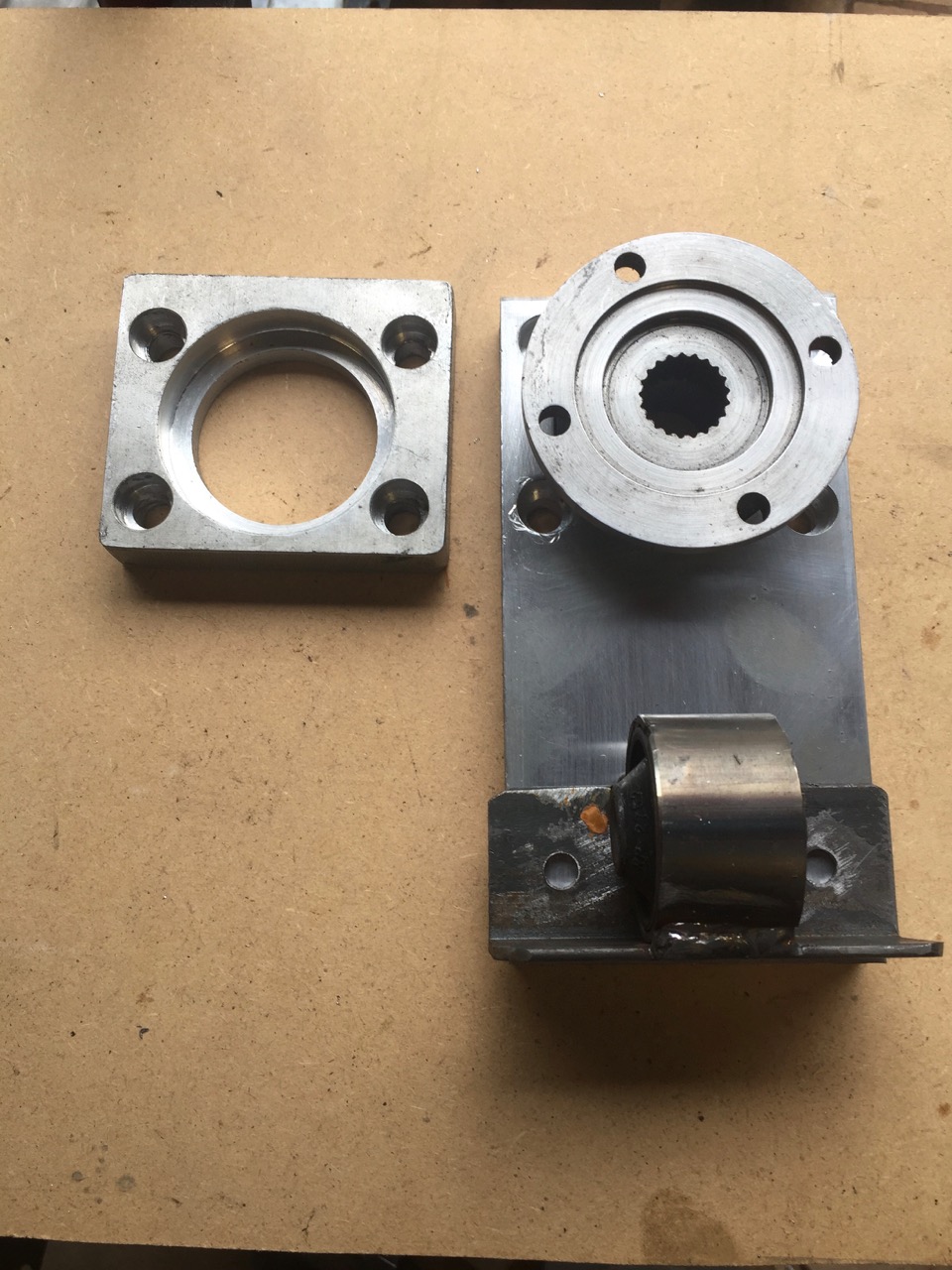

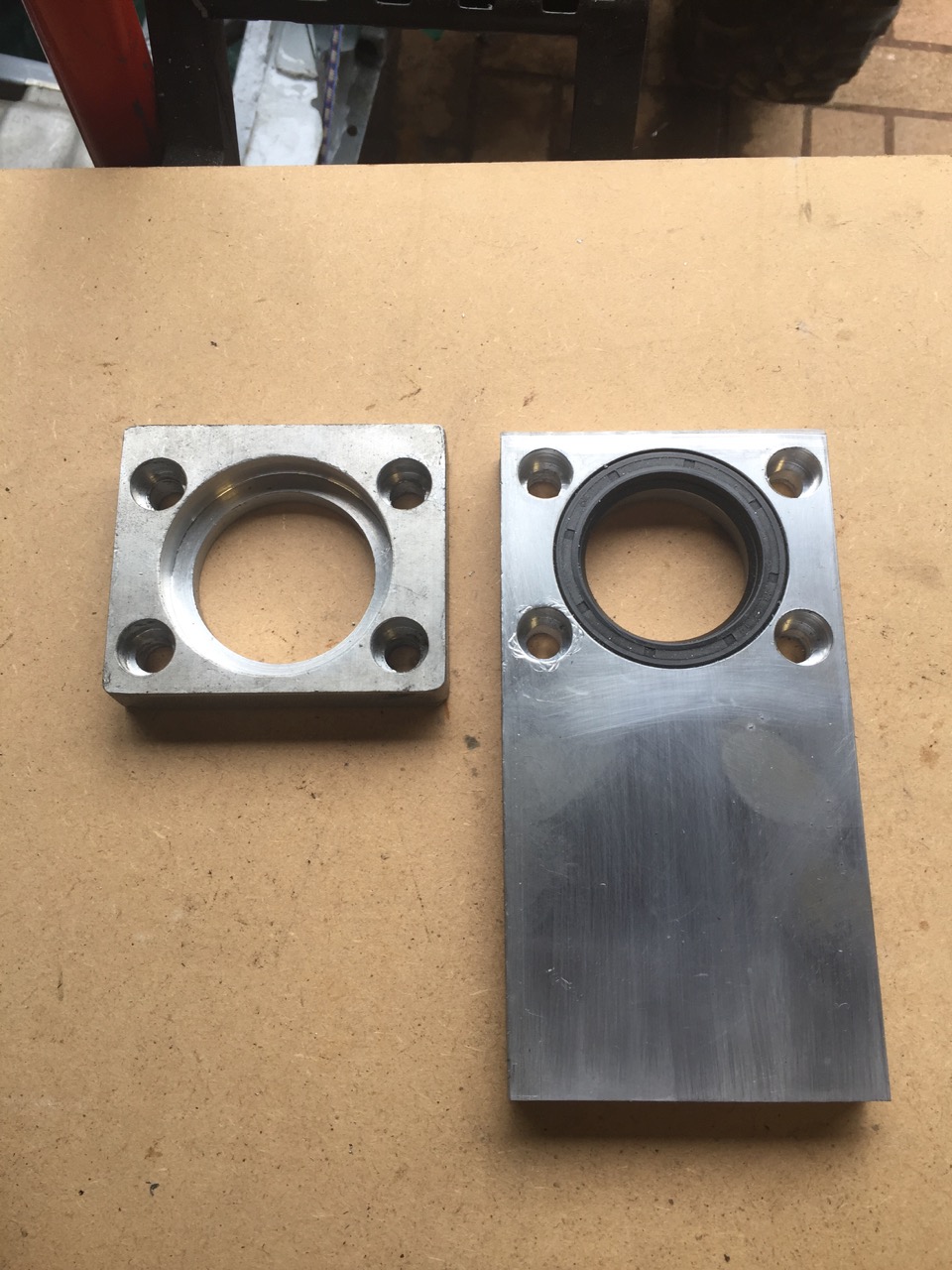

For the Rear, just going to copy how Citroen did it, need to remake the Oil Seal plate much longer and bolt the bush support to it. Attachment:
IMG_1207.jpg [ 233.76 KiB | Viewed 4885 times ]
Using Transit bushes, very cheap:), hope they don't fail:(
|
July 19th, 2017, 1:28 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

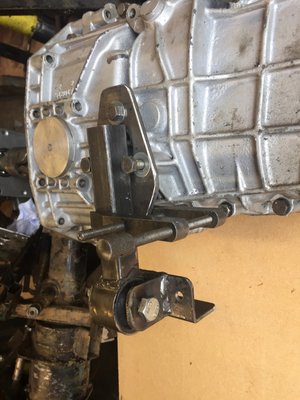

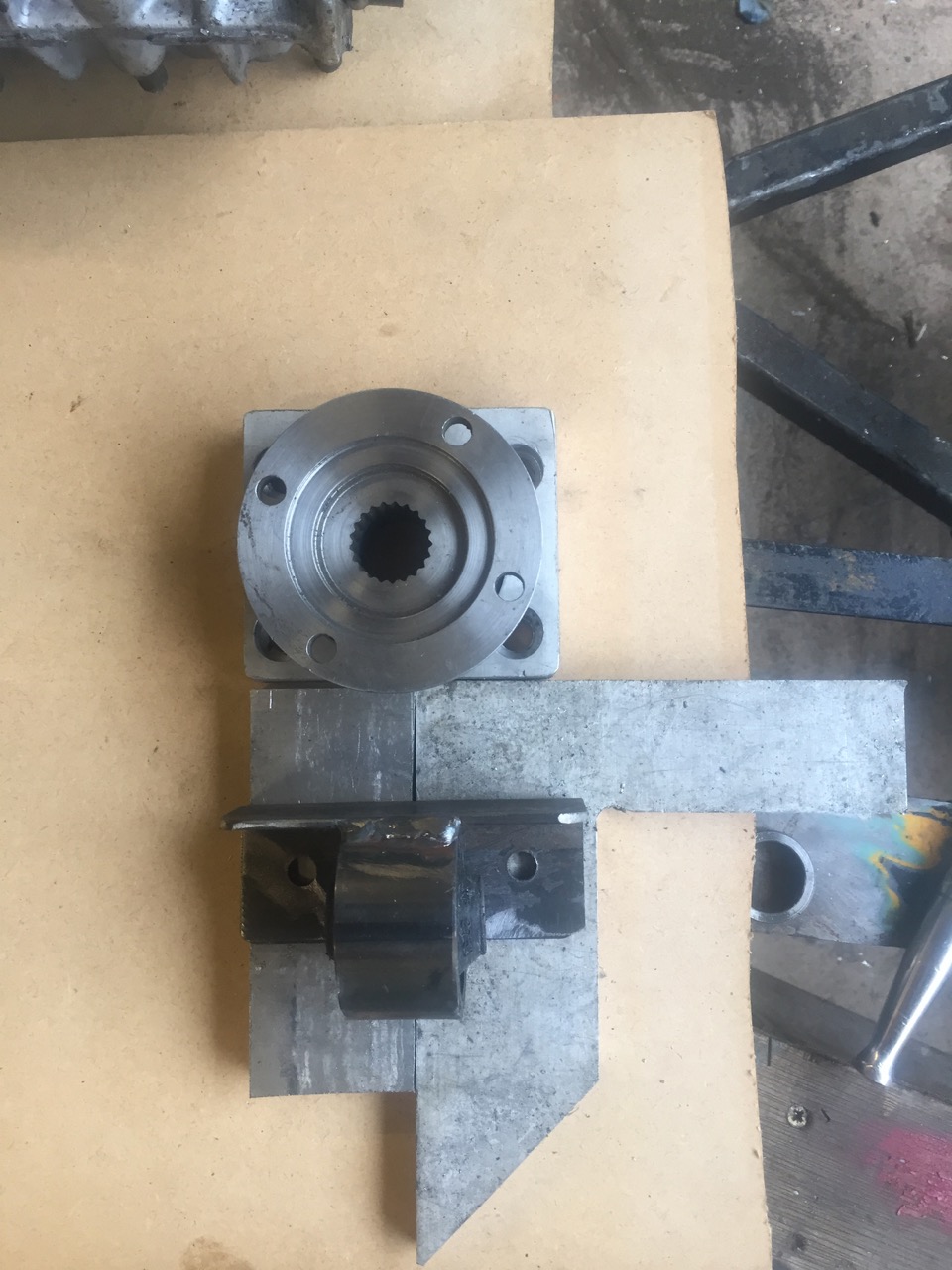

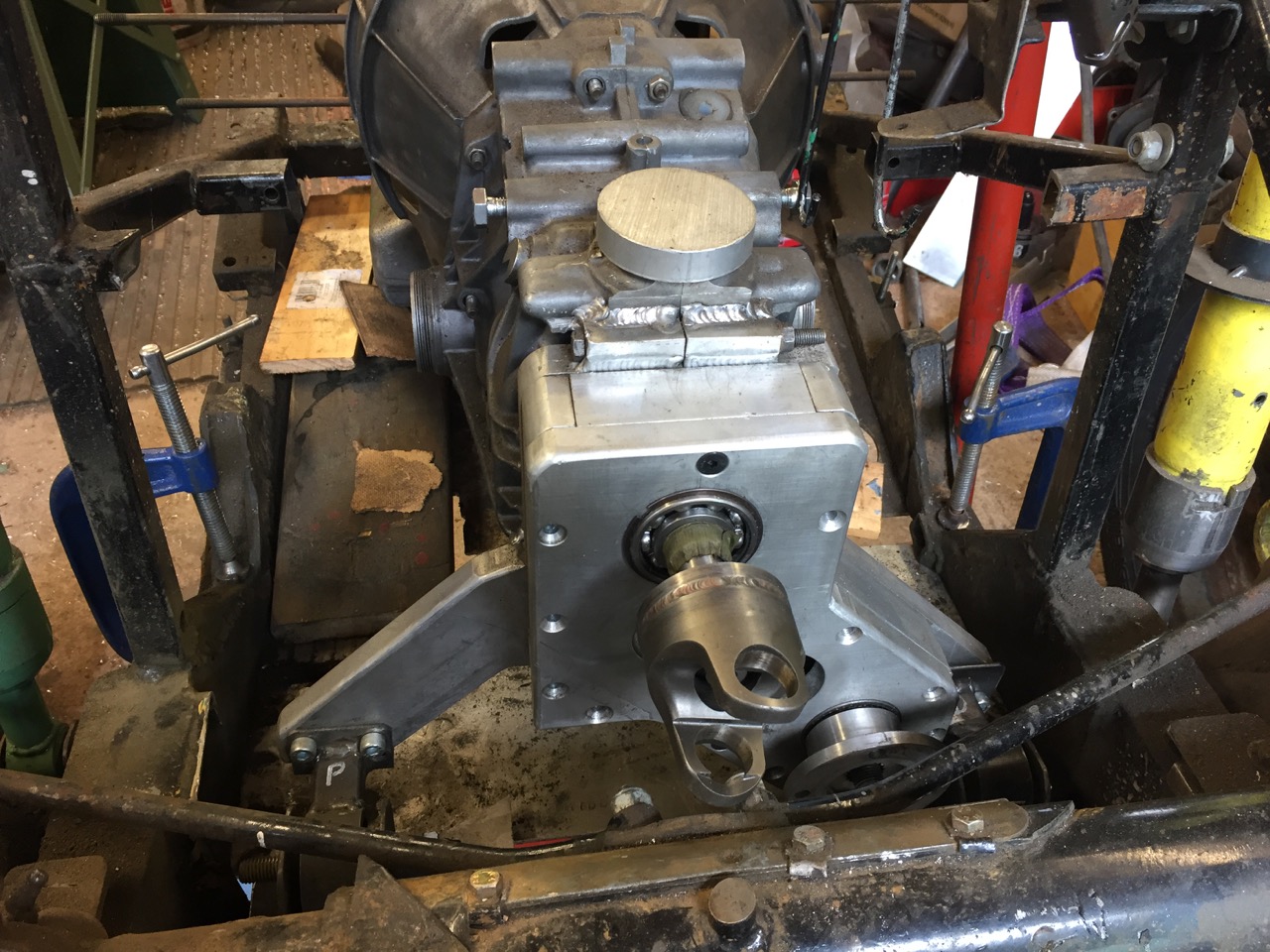

New extended gearbox mount. Attachment:
IMG_1212.jpg [ 275.61 KiB | Viewed 4867 times ]
Attachment:
IMG_1213.jpg [ 290.9 KiB | Viewed 4867 times ]
|
July 22nd, 2017, 2:49 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

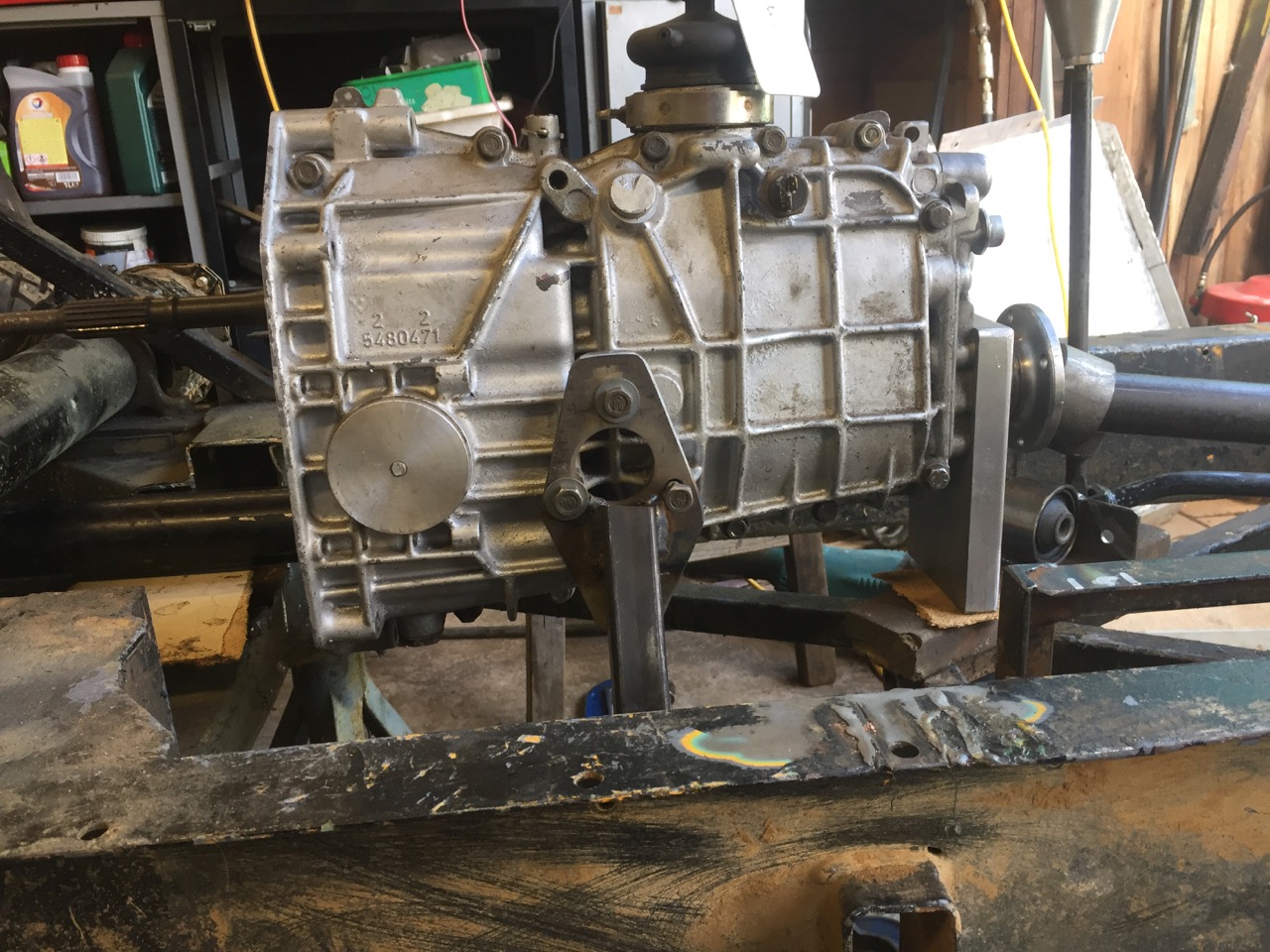

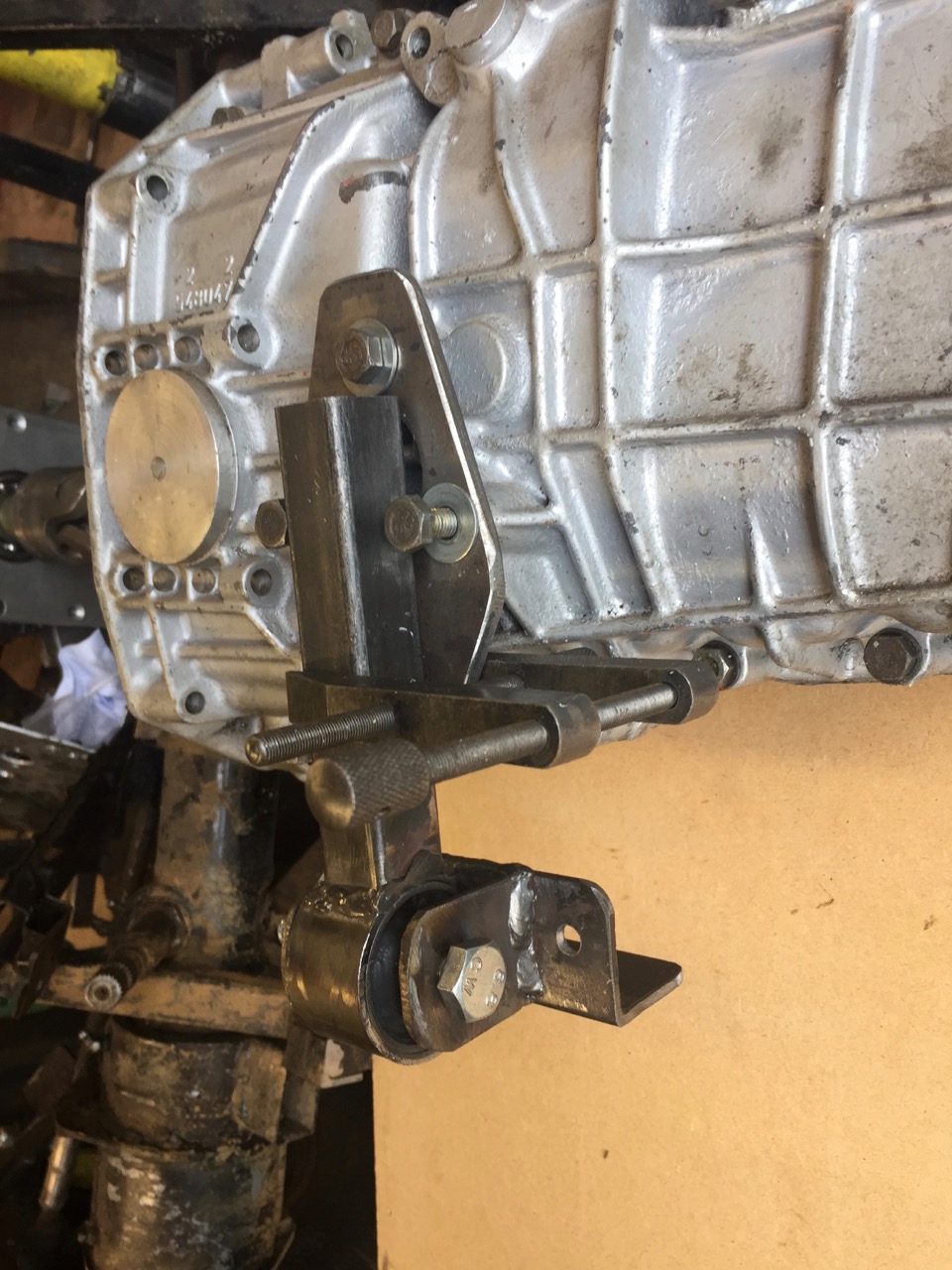

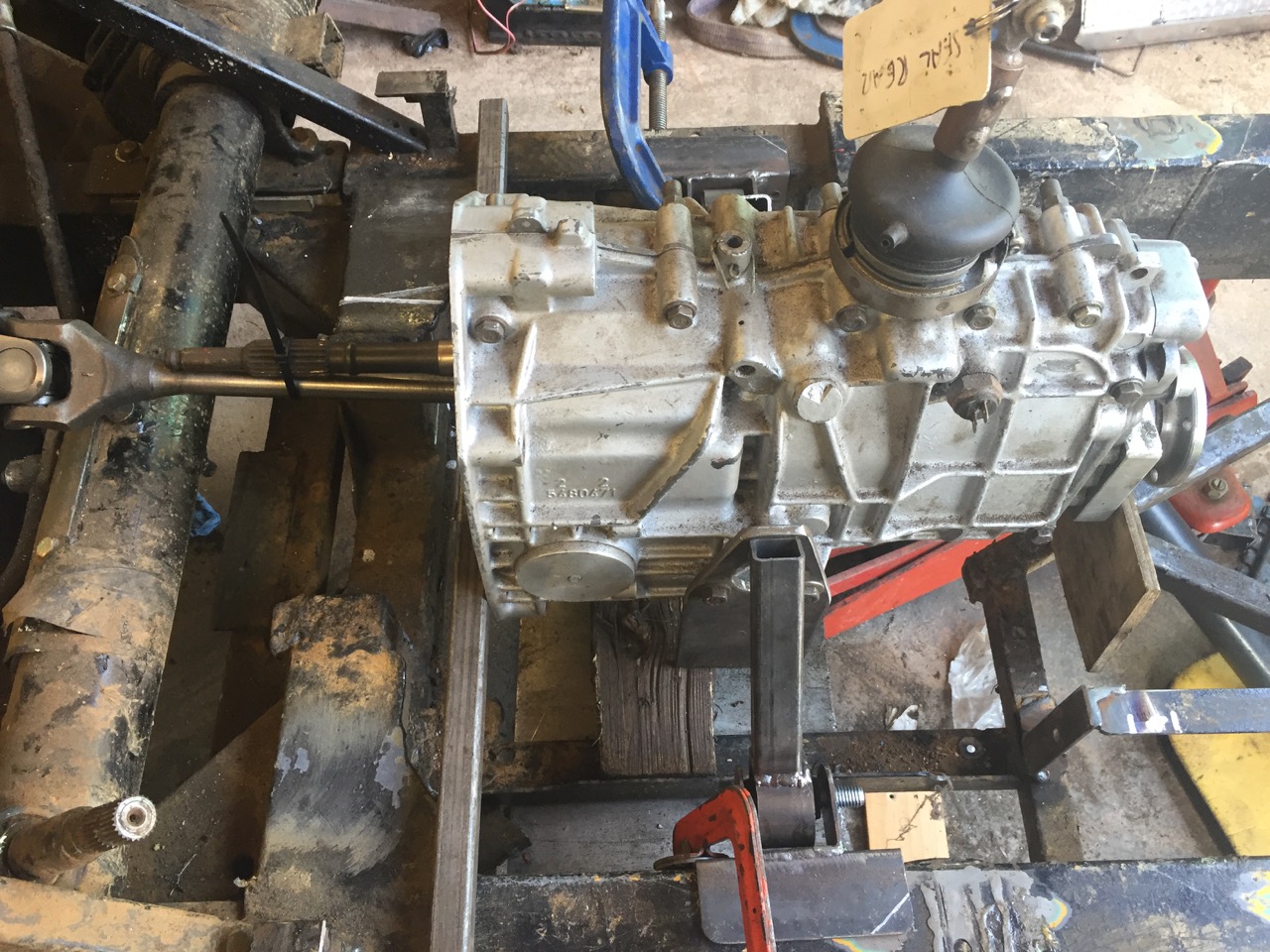

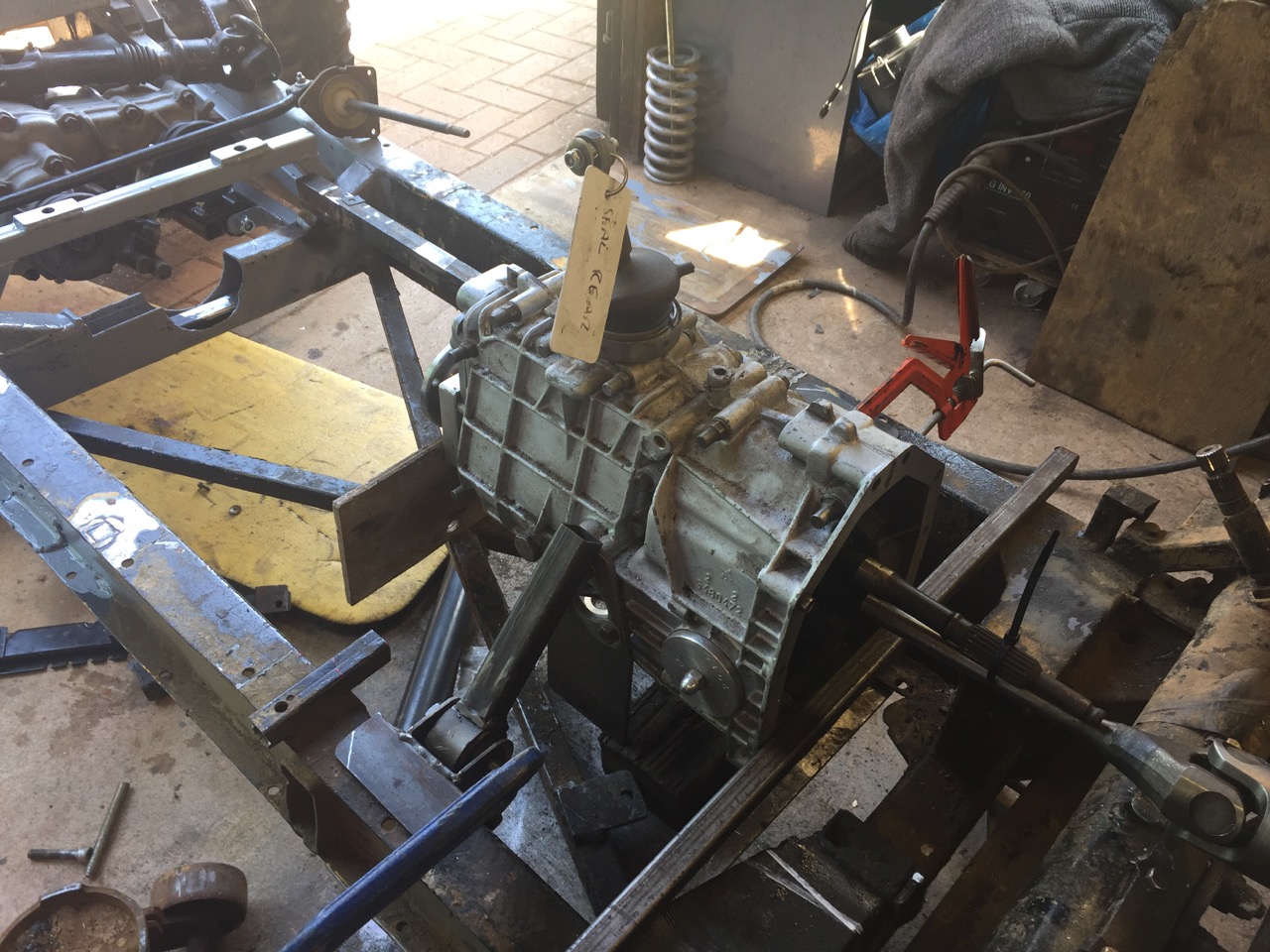

Gearbox Side Brackets. Attachment:
IMG_1233.jpg [ 350.65 KiB | Viewed 4836 times ]
Attachment:
IMG_1235.jpg [ 373.36 KiB | Viewed 4836 times ]
Attachment:
IMG_1239.jpg [ 322.3 KiB | Viewed 4836 times ]
|
July 26th, 2017, 2:58 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

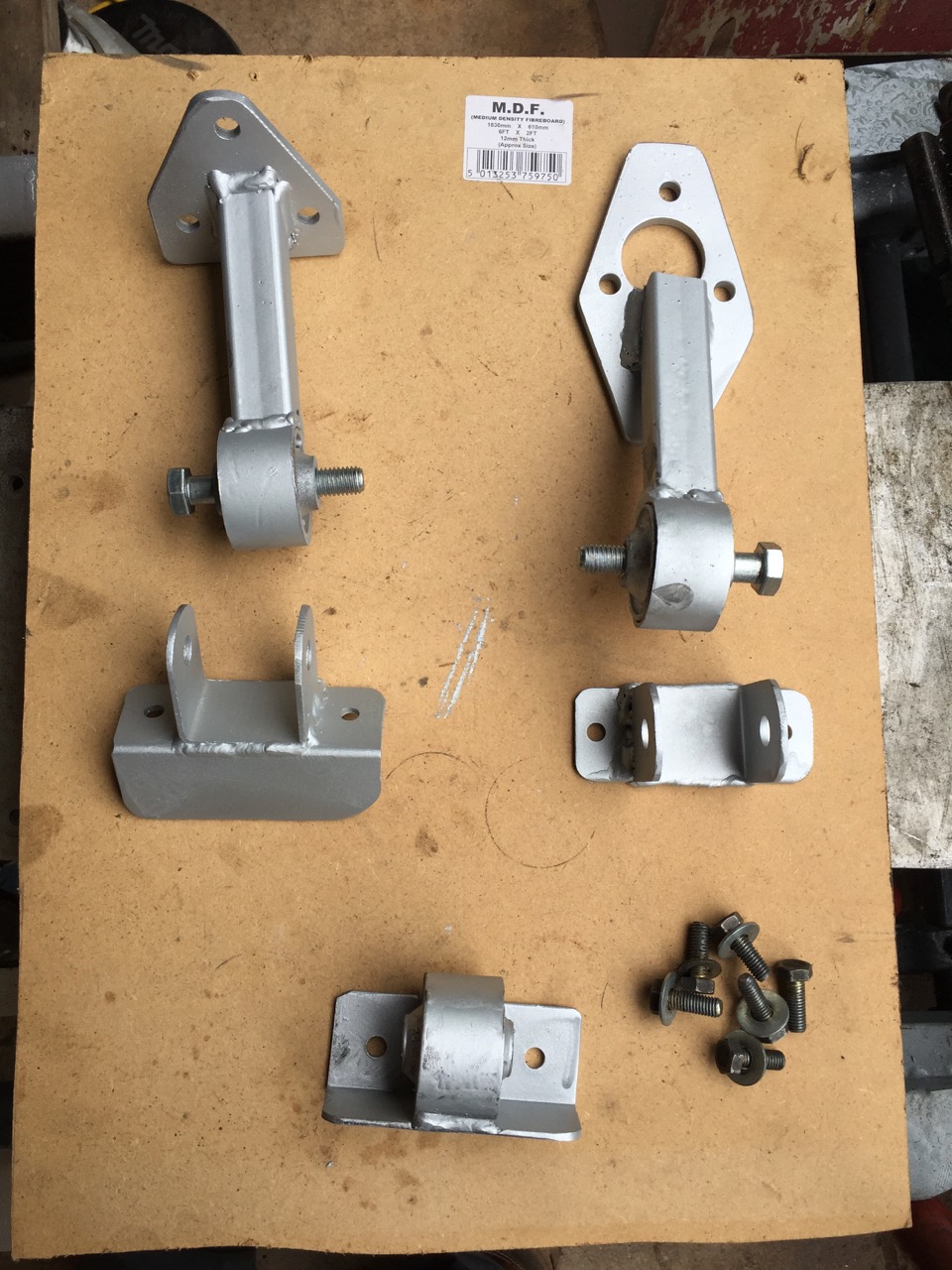

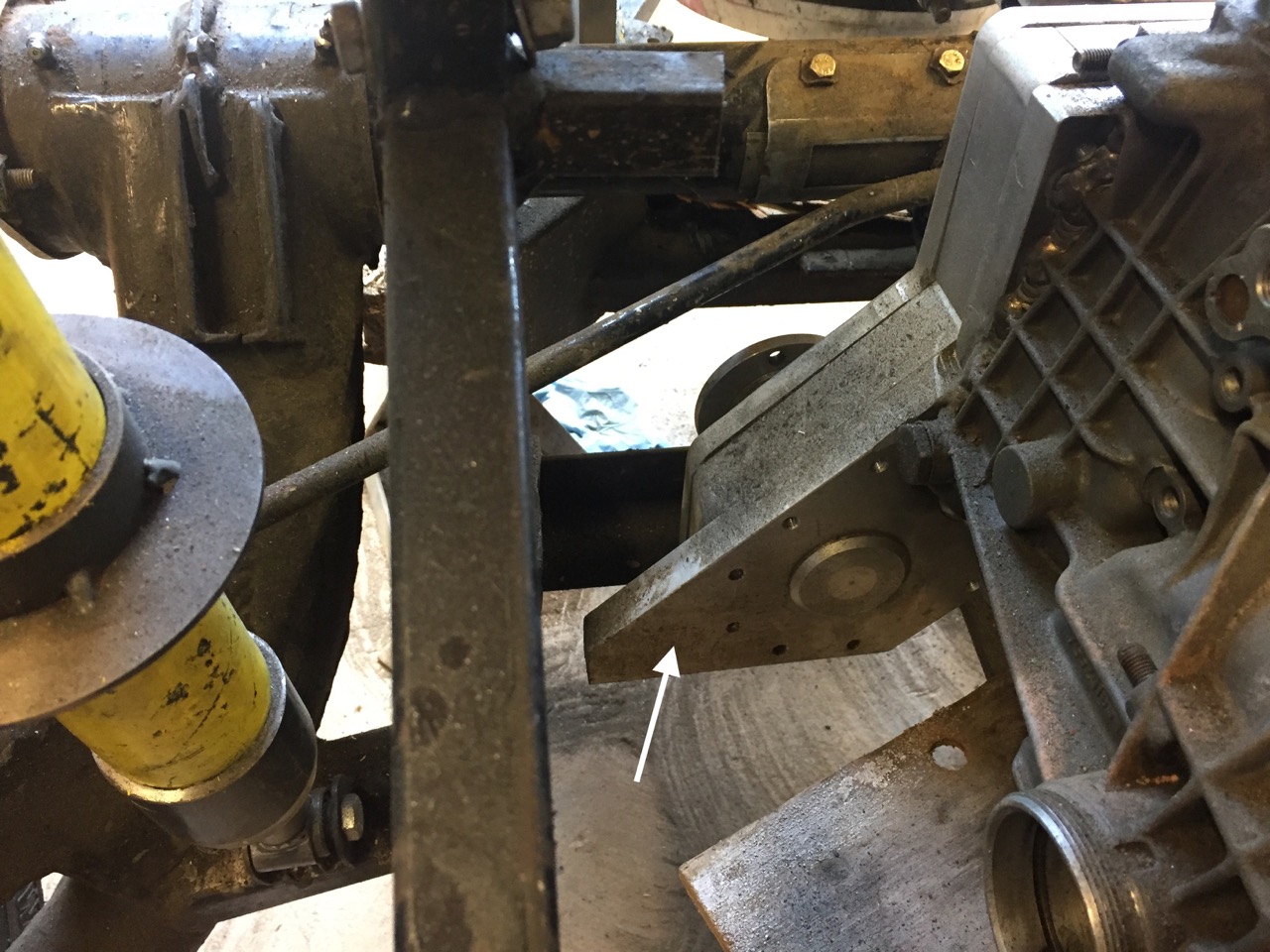

More Support Brackets this time for the back of the front differential. Also have to make some revised brackets for the engine mounts, Chassis Support Attachment:
IMG_1240.jpg [ 48 KiB | Viewed 4813 times ]

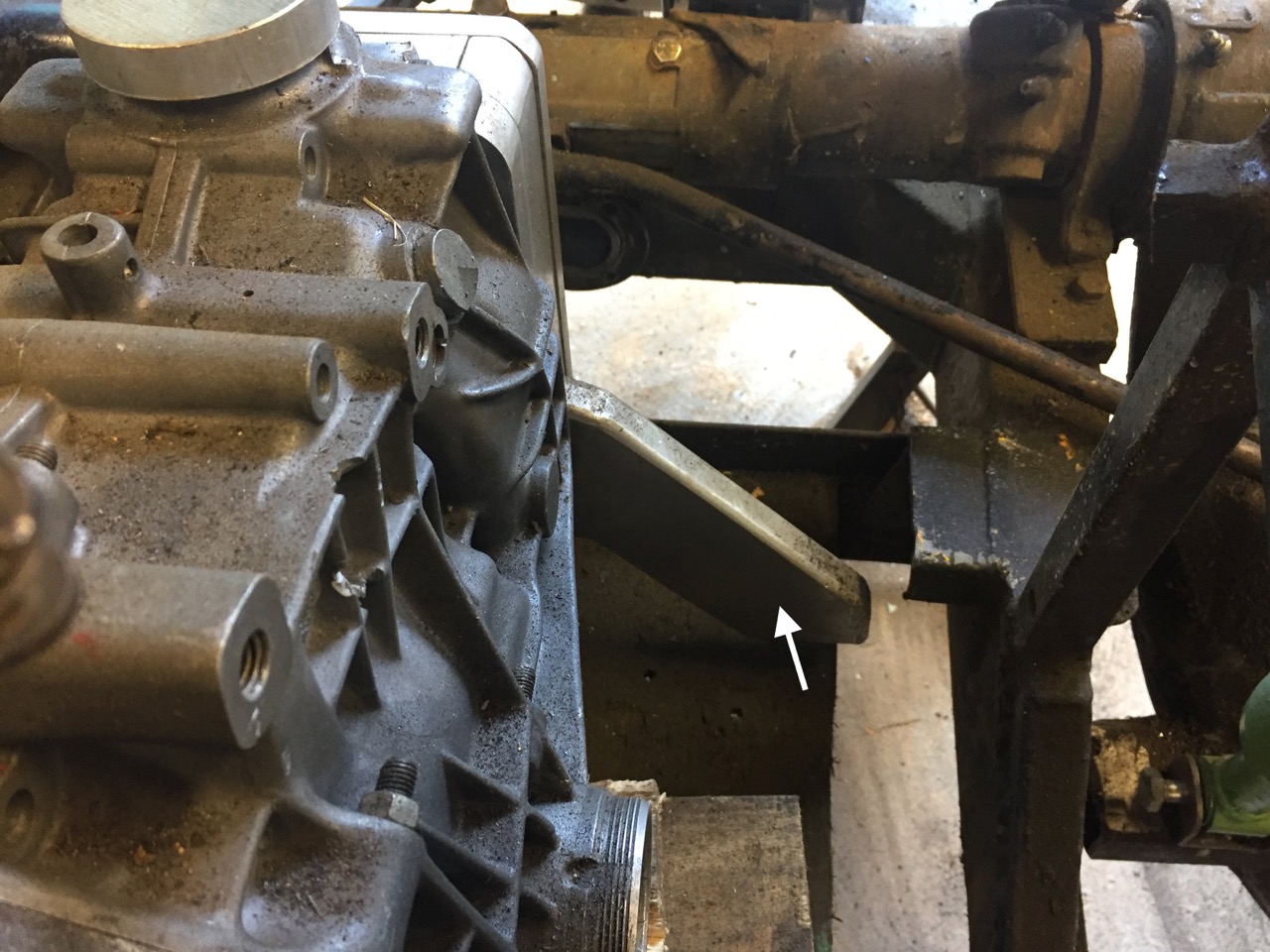

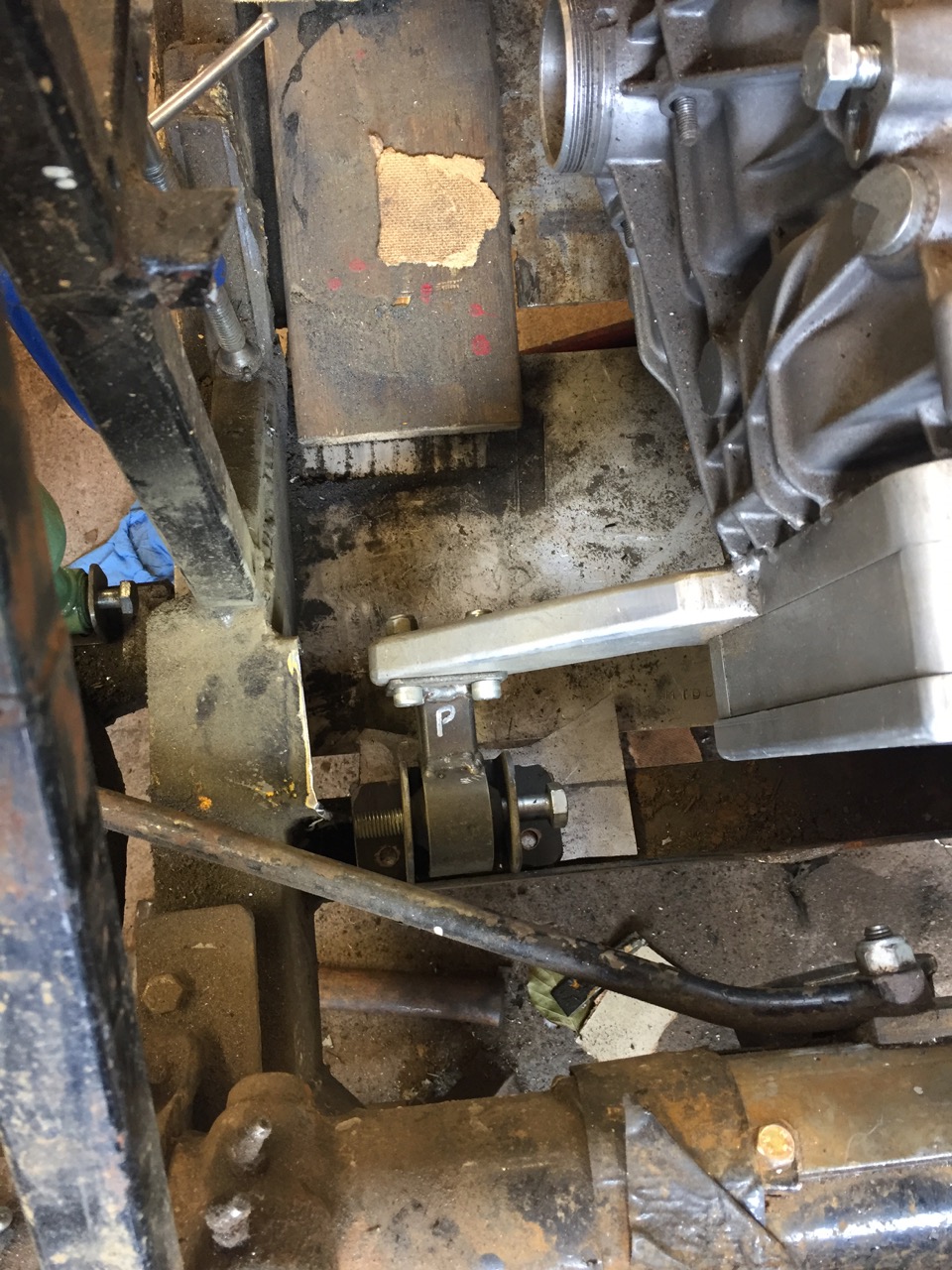

Left Side attachment point. Attachment:
IMG_1242.jpg [ 281.75 KiB | Viewed 4813 times ]

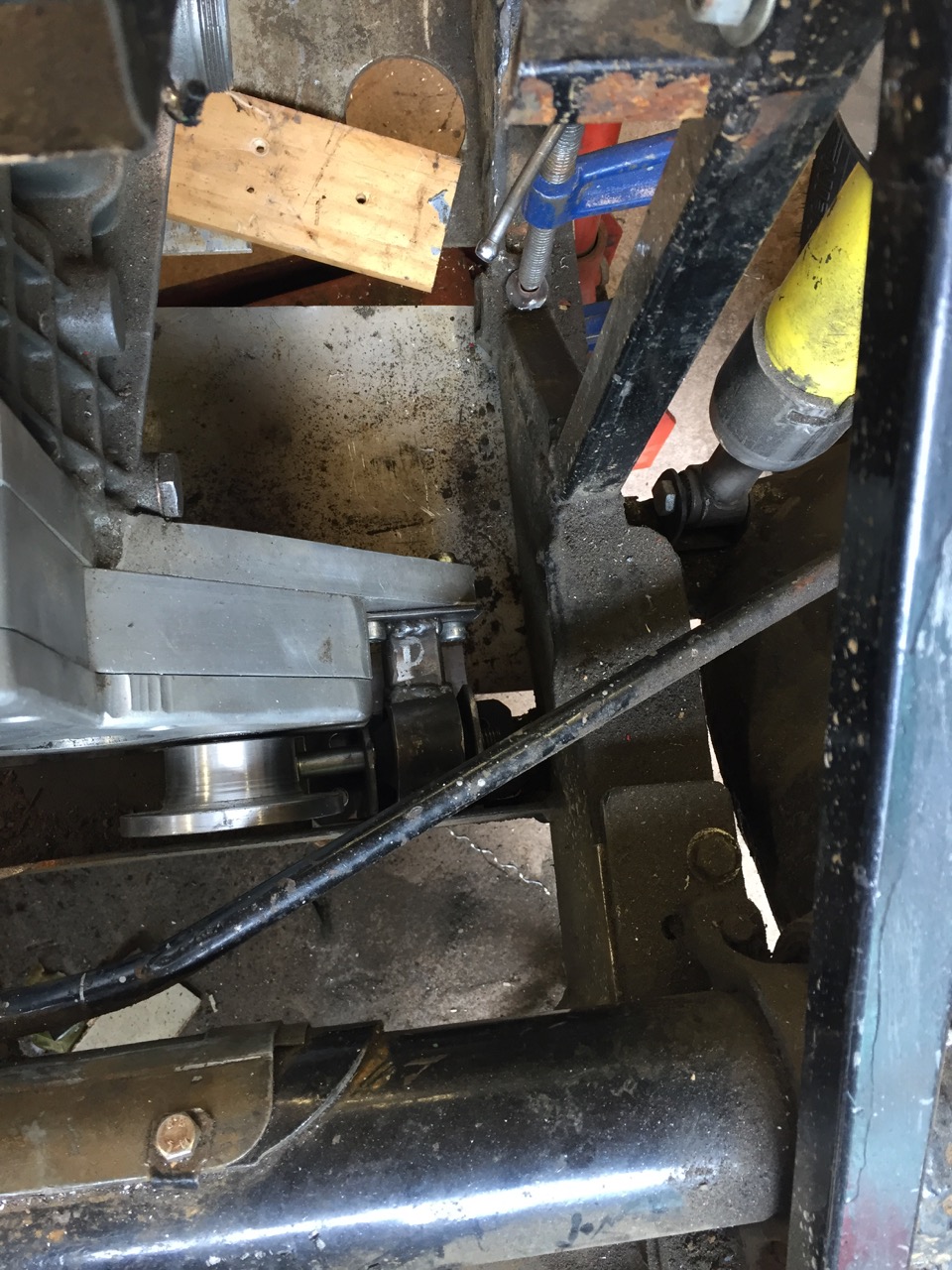

Right Side attachment point. Attachment:
IMG_1243.jpg [ 301.12 KiB | Viewed 4813 times ]
|
July 27th, 2017, 5:13 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2247 Location: Near Monmouth
|
 Re: Make Your Own ....2CV.... 4x4

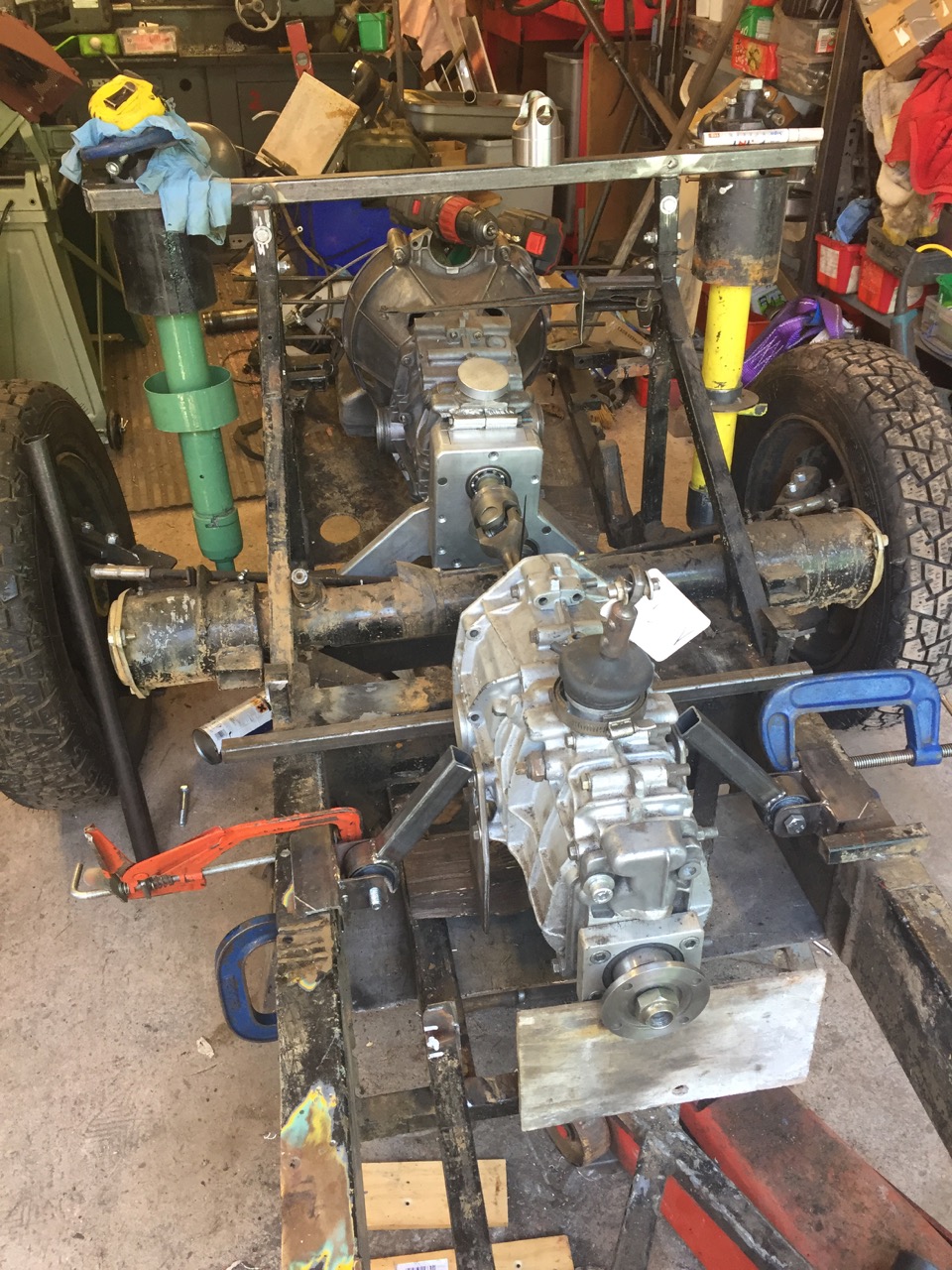

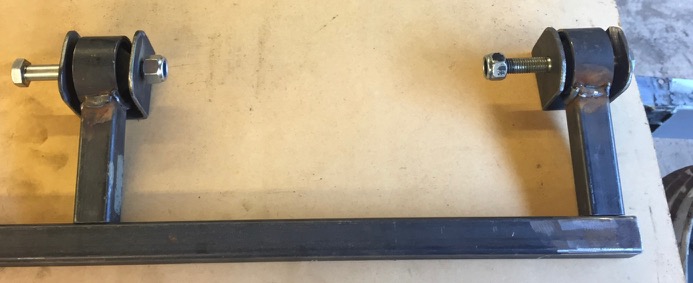

Ended up with the brackets on the back of the rear plate. The mounts on the chassis will be bolted on, so that spacers can be used to set the correct height of the box. At the moment all the shafts have clearance? Left hand mount was hard to measure, fabricate and fix, Right hand side Very Hard.... as there is not much room. Attachment:
IMG_1262.jpg [ 351.61 KiB | Viewed 4783 times ]
Left Hand Side. Attachment:
IMG_1259.jpg [ 364.72 KiB | Viewed 4783 times ]
Right Hand Side. Attachment:
IMG_1260.jpg [ 342.78 KiB | Viewed 4783 times ]
|
July 31st, 2017, 4:31 pm |
|
|
