Transfer box.. A new version...
| Author |
Message |
|
Geert
Firing on two.
Joined: July 10th, 2010, 12:35 pm
Posts: 1155
Location: Magyarország
|
 Re: Transfer box.. A new version... well you learn as you progress.
_________________
'T is een kwestie van geduld.........
Ez a türelem kérdése.........
|
| June 7th, 2024, 6:39 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|

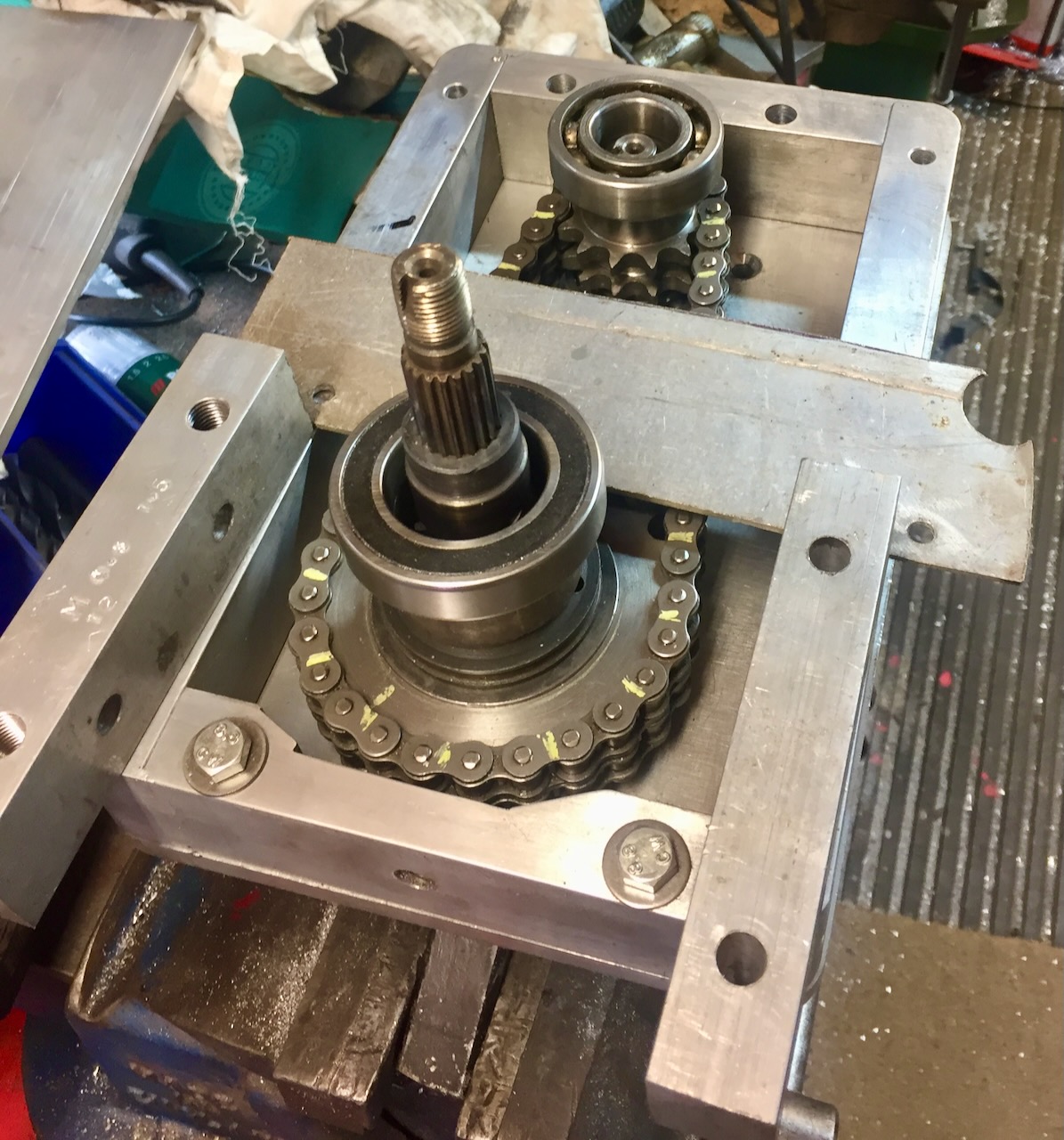

Re: Transfer box.. A new version... Duplex chain... Mock up to see how to make the rear cover (many parts!!) The thin plate bit in the middle is for of the clearance axle/steering tube. Attachment:
IMG_1798.jpeg [ 352.52 KiB | Viewed 5479 times ]
|
| June 8th, 2024, 11:52 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Back cover coming together, mild panic and curse it didnt fit on first try, it was the wrong way up:) Attachment:
IMG_1820.jpeg [ 251.28 KiB | Viewed 5429 times ]
|
| June 11th, 2024, 4:05 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Getting there --------- top shaft/bearing end plate Attachment:
IMG_1827.jpeg [ 241.28 KiB | Viewed 5398 times ]
Attachment:
IMG_1825.jpeg [ 227.51 KiB | Viewed 5398 times ]
|
| June 13th, 2024, 12:42 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Bit of a disaster... Had planned to use "o" ring material a seal. Two broken 3.5mm end mills and the result is a mess.  Will now use old fashioned gaskets.  Attachment:
IMG_1829 2.jpeg [ 206.44 KiB | Viewed 5363 times ]
|
| June 15th, 2024, 8:58 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Will it fit????  Attachment:
IMG_1837.jpeg [ 235.35 KiB | Viewed 5357 times ]
|
| June 15th, 2024, 11:55 am |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Couple of photos............ Attachment:
IMG_1848.jpeg [ 272.54 KiB | Viewed 5339 times ]
Attachment:
IMG_1842.jpeg [ 242.41 KiB | Viewed 5339 times ]
|
| June 15th, 2024, 5:14 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Last major part of the housing added. Attachment:
IMG_1854.jpeg [ 269.72 KiB | Viewed 5293 times ]
Some views..... its quite large, possibly over engineered, unlike Colin Chapman, said only add "lightness" Attachment:
P1010897.jpeg [ 225.71 KiB | Viewed 5293 times ]
Attachment:
P1010898.jpeg [ 329.01 KiB | Viewed 5293 times ]
Attachment:
P1010899.jpeg [ 329.42 KiB | Viewed 5293 times ]
Attachment:
P1010900.jpeg [ 259.94 KiB | Viewed 5293 times ]
Attachment:
P1010901.jpeg [ 213.46 KiB | Viewed 5293 times ]
|
| June 18th, 2024, 4:45 pm |
|
|
|
AZL57
Firing on two.
Joined: October 22nd, 2014, 10:59 pm
Posts: 2193
Location: South-Limburg
|
Re: Transfer box.. A new version... Well made...so the driveshaft goes inside the chassis?
|
| June 18th, 2024, 10:47 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2245
Location: Near Monmouth
|
Re: Transfer box.. A new version... Yes, like a 4x4 Mehari
|
| June 19th, 2024, 7:42 am |
|
|
