 1976 AZU250
Author Message
Firing on two.
User avatar

Joined: October 23rd, 2009, 10:41 pm
Posts: 2350
Location: Worcestershire
Post Re: 1976 AZU250
Thanks for your replies. I'll have a go with the soldering iron.

One other question: should the float move up and down freely? The one on my gauge seems rather stiff.

_________________


May 1st, 2018, 7:24 pm
Profile
Firing on two.
User avatar

Joined: March 21st, 2013, 12:04 am
Posts: 699
Location: Exeter, Devon
Post Re: 1976 AZU250
Put some petrol on it and see if that frees it. :)

_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....


May 1st, 2018, 7:36 pm
Profile
Firing on two.
User avatar

Joined: October 22nd, 2014, 10:59 pm
Posts: 1103
Location: South-Limburg
Post Re: 1976 AZU250
The part where the contact slides up and down inside might be a bit oxydized after a long period of non use i had that too.


May 1st, 2018, 8:13 pm
Profile
Agony Aunt - You have a car problem? Speak to Ken

Joined: March 6th, 2009, 1:40 am
Posts: 3628
Post Re: 1976 AZU250
Smiffy,
the 'wiper' which moves over the windings of the rheostat may be worn, as in the photograph below.
A repair can be carried out with a blob of solder, as long as it's not too late and it's damaged the windings...
.
Image'Wiper' in fuel tank rheostat, before... by slcchassis, on Flickr

_________________


May 2nd, 2018, 4:45 pm
Profile
Firing on two.
User avatar

Joined: October 23rd, 2009, 10:41 pm
Posts: 2350
Location: Worcestershire
Post Re: 1976 AZU250

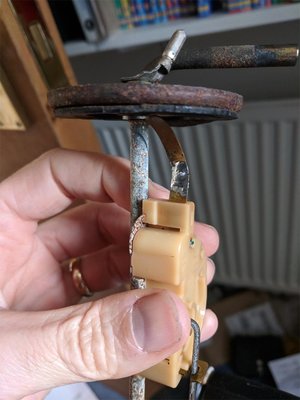

Thanks for that tip, Ken.
Checked the "wiper" and it looks fine.
Soldered the broken strip. Job's a goodun!
Attachment:
fuel gauge fix sml.jpg
fuel gauge fix sml.jpg [ 109.4 KiB | Viewed 557 times ]

_________________


May 3rd, 2018, 7:38 pm
Profile
Firing on two.
User avatar

Joined: October 23rd, 2009, 10:41 pm
Posts: 2350
Location: Worcestershire
Post Re: 1976 AZU250
Started tidying up the van's metal petrol tank today. The fuel gauge looks OK, but the inside of the tank looks a bit rusty above the halfway point.

Is there a way to de-rust the tank's insides?

_________________


June 3rd, 2018, 8:46 pm
Profile
Firing on two.

Joined: December 21st, 2014, 7:33 pm
Posts: 557
Location: Rhayader Mid Wales
Post Re: 1976 AZU250
Probably, if there is flakey stuff inside, chuck some nuts in(count 'em in and out ;) ) and cocktail shake it, rinse and fit an in line fuel filter. :) .


June 3rd, 2018, 10:03 pm
Profile
Firing on two.
User avatar

Joined: March 21st, 2013, 12:04 am
Posts: 699
Location: Exeter, Devon
Post Re: 1976 AZU250
How detrimental would it be to shake some sharp sand around inside!

_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....


June 3rd, 2018, 11:54 pm
Profile
Firing on two.

Joined: December 21st, 2014, 7:33 pm
Posts: 557
Location: Rhayader Mid Wales
Post Re: 1976 AZU250
https://www.wickes.co.uk/Wickes-Sharp-S ... g/p/220112

you're on a commission aren't you ;) .


June 4th, 2018, 8:40 pm
Profile
Firing on two.
User avatar

Joined: March 21st, 2013, 12:04 am
Posts: 699
Location: Exeter, Devon
Post Re: 1976 AZU250
Well, you have to admit, it is a bargain. :lol:

Anyway, can't stop, I'm off to Wicked. ;)

_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....


June 4th, 2018, 9:00 pm
Profile
