Post Re: My Beduino
Looking good,

Is it like a 123 mounting?

Have thought about putting the "Hall" sensors on board like 123 with the rest on the bulkhead??
January 29th, 2025, 9:32 am
Profile
Roger V
Firing on two.
User avatar

Joined: March 21st, 2013, 12:04 am
Posts: 1634
Location: Exeter, Devon
Post Re: My Beduino
Hi Pete :)

Yes, it fits like a 123.

Obviously the issue whilst attached to the engine, is heat and vibration. The upside though is that you can hide most of the wiring.

_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....

January 29th, 2025, 12:01 pm
Profile
Roger V
Firing on two.
User avatar

Joined: March 21st, 2013, 12:04 am
Posts: 1634
Location: Exeter, Devon
Post Re: My Beduino

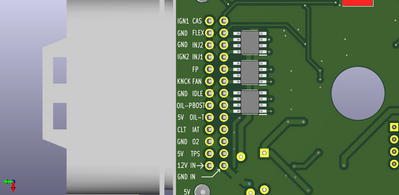

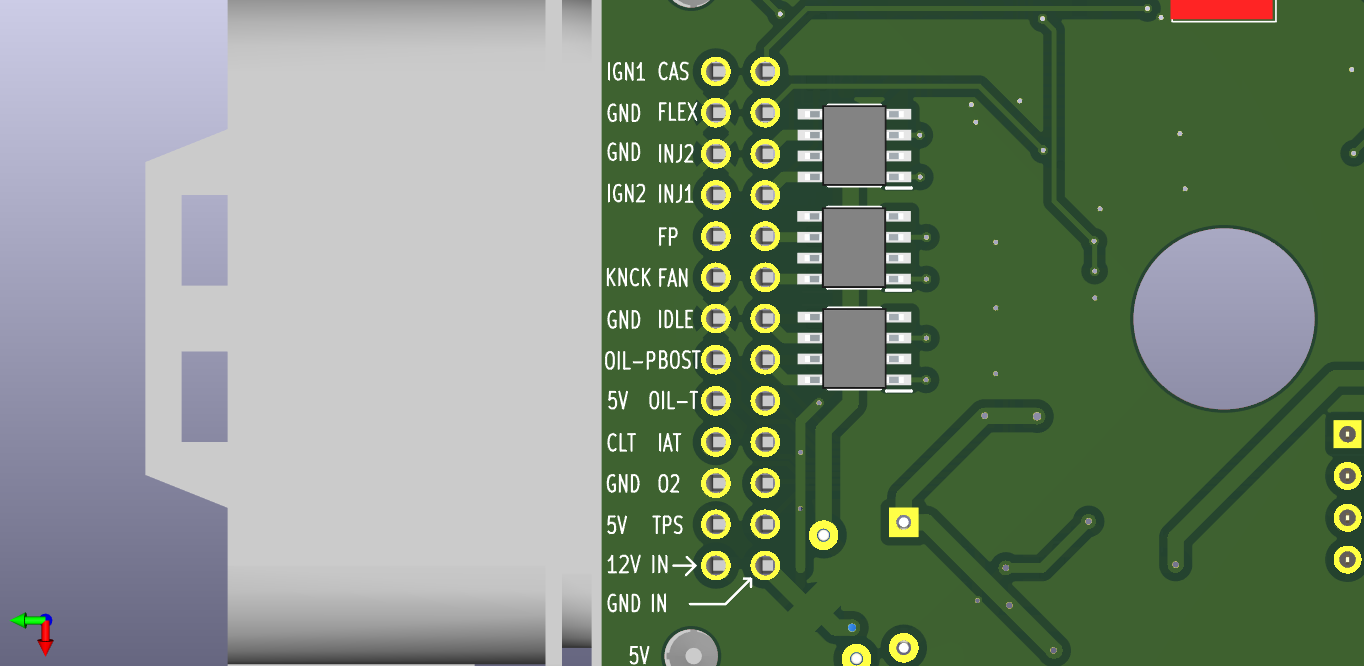

Just doing some amendments to the pinouts on the connector ...
I may need a bigger boat!


Attachments:
Pin Out.png
Pin Out.png [ 97.72 KiB | Viewed 31222 times ]

_________________
If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
January 29th, 2025, 11:26 pm
