subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb
Inside Dash and propshaft tunnel etc Attachment:
P1010249.jpeg [ 142.11 KiB | Viewed 1148 times ]
Prop tunnel is fabricated from Alu, saved about 8kg from the orginal heavy steel version, coved with thin carpet to reduce sound/resonce. Extra panel for USB, Diesel Heater Control, Map Light, Reverse lamp, Alu Lever is the rear brake line lock valve. Attachment:
P1010247.jpeg [ 100.83 KiB | Viewed 1148 times ]
Speedo from a Quad with small speed sensor (no need for a 2.5 meter speedo cable from the rear diff) Citroen switches/ and relays and lamps with LEDs fitted.
|
October 3rd, 2022, 12:58 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb
Still got a long list but jobs are smaller.. Attachment:
IMG_4302 3 copy.jpg [ 903.45 KiB | Viewed 1041 times ]
|
October 18th, 2022, 5:26 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb
Current state Attachment:
E2CCB33A-D24B-4CAB-ABED-E2363B58027A.jpeg [ 426.35 KiB | Viewed 891 times ]
|
November 8th, 2022, 11:03 am |
|
 |
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am Posts: 1454 Location: Exeter, Devon
|
 Re: EPB Refurb
Shiney
_________________ If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
November 8th, 2022, 1:57 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb

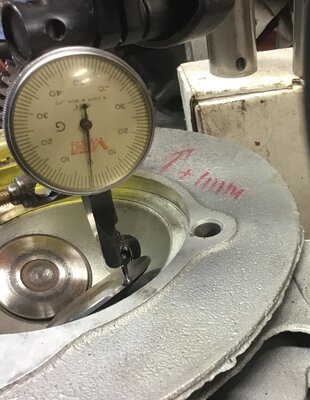

Cylinder Heads. Exhaust Vales ok. Inlets to much wear, so new items. Using my £10 dial guage (Car Boot) Attachment:
dial.jpg [ 912.77 KiB | Viewed 709 times ]

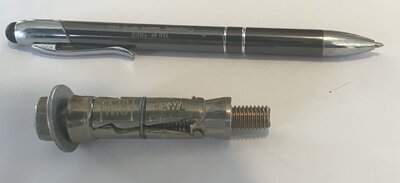

Tubes fitted with rawl plug M8 (have made a more robust tool.) Also M8 exhaust studs the old M7 studs very rusty. Attachment:
expand.jpg [ 365.44 KiB | Viewed 709 times ]
Head on left after Vapour Blast  Attachment:
head.jpg [ 958.82 KiB | Viewed 709 times ]
My bargin crank from ebay in 2014 is a very large door stop
|
December 3rd, 2022, 3:09 pm |
|
 |
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am Posts: 1454 Location: Exeter, Devon
|
 Re: EPB Refurb
 Who did vapour blast?
_________________ If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
December 3rd, 2022, 11:10 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb
MTP Services Unit 1, Ladygrove Business Park Mitcheldean Gloucestershire GL17 0DS Cylinder heads £25 !
|
December 4th, 2022, 10:32 am |
|
 |
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am Posts: 1454 Location: Exeter, Devon
|
 Re: EPB Refurb
I don't like spending money on things like that  How much better will it make it run?
_________________ If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
December 4th, 2022, 5:54 pm |
|
 |
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm Posts: 2088 Location: Near Monmouth
|
 Re: EPB Refurb
Parts need to be cleaned before they are machined also allows any cracks or defects to be seen.
|
December 4th, 2022, 7:48 pm |
|
 |
Roger V
Firing on two.
Joined: March 21st, 2013, 12:04 am Posts: 1454 Location: Exeter, Devon
|
 Re: EPB Refurb
valid point  I just shove it in
_________________ If you can't fix it with a hammer, it's probably electrical (or, an electric fuel pump!) ....
|
December 4th, 2022, 8:22 pm |
|
|
