 XMAS Quiz (Technical)
Author Message
Firing on two.
User avatar

Joined: March 5th, 2009, 6:23 pm
Posts: 1572
Location: Near Monmouth
Post XMAS Quiz (Technical)

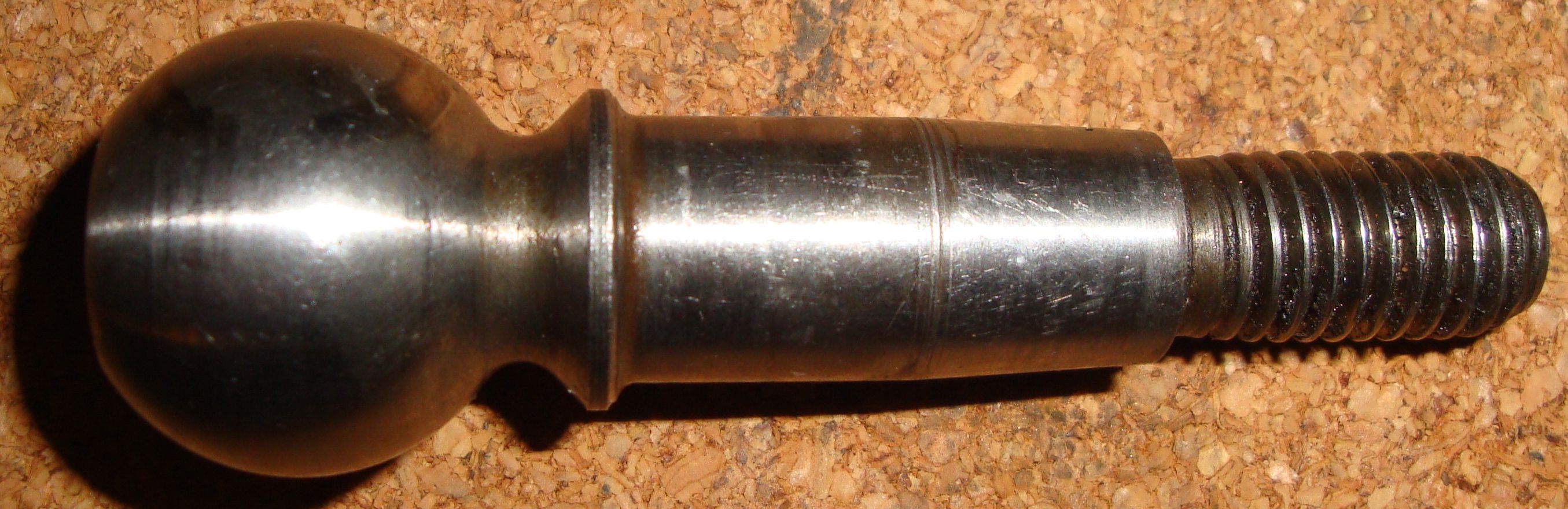

See Pic...

Attachment:
DSC03976.jpg [ 357.83 KiB | Viewed 678 times ]


Is the taper a Morse taper?

How can I measure it accurately?


December 25th, 2011, 4:33 pm
Profile
Firing on two.

Joined: April 22nd, 2009, 11:06 pm
Posts: 3683
Location: Ecosse
Post Re: XMAS Quiz (Technical)
http://en.wikipedia.org/wiki/Morse_taper#Morse

_________________
Kissing the Lash
"Any advice of a technical nature is given on the understanding that I've actually done this shit, not just read about it in D*lly club mag some time ago.


December 25th, 2011, 10:23 pm
Profile
Agony Aunt - You have a car problem? Speak to Ken

Joined: March 6th, 2009, 1:40 am
Posts: 3532
Post Re: XMAS Quiz (Technical)
A Morse taper looks to have a shallower slope than what's found on ball joints, which seem to be more in the 6* to almost 10* range with 7.15* being one of the most common.

Guess you'll be adding one of these to your shopping list? ;)
http://stores.ebay.com/XKUT

ken

_________________


December 25th, 2011, 11:18 pm
Profile
Firing on two.
User avatar

Joined: March 5th, 2009, 6:23 pm
Posts: 1572
Location: Near Monmouth
Post Re: XMAS Quiz (Technical)
Hi Guys,

Results so far...

1. Took Picture
2. Imported image in to QCAD.
3. Drew lines on edges.
4. Used "Angle between two Lines" to measure angle.
5. Result = 3.56Deg.
6. Not a morse taper (No susprise there)
7. Could a CNC mill be used to measure this ???


December 27th, 2011, 2:06 pm
Profile
Agony Aunt - You have a car problem? Speak to Ken

Joined: March 6th, 2009, 1:40 am
Posts: 3532
Post Re: XMAS Quiz (Technical)
Peter,
have you taken into account that it's only that part of the pin which fits into the track rod which is tapered, with the majority of the shank having a uniform diameter?
A (very) quick check with a set of calipers suggests that the included angle of the tapered section might be closer to 6*.
Isn't it going to be nigh on impossible to create a hole into which that pin would fit unless the part was built up from discrete sections? :?

ken



subarupete wrote:
Hi Guys,

Results so far...

1. Took Picture
2. Imported image in to QCAD.
3. Drew lines on edges.
4. Used "Angle between two Lines" to measure angle.
5. Result = 3.56Deg.
6. Not a morse taper (No susprise there)
7. Could a CNC mill be used to measure this ???

_________________


December 27th, 2011, 2:53 pm
Profile
Firing on two.
User avatar

Joined: March 5th, 2009, 6:23 pm
Posts: 1572
Location: Near Monmouth
Post Re: XMAS Quiz (Technical)
Hi Ken,
Realise the shank near the ball is Parallel, the angle was measured with reference to this.
Also I will try with digital caliers and some trig.
My measurements .......small end of the taper is 11.85mm Large end 12.93 Length 12.32mm.
The idea is to use this part with a fabricated steering arm and a slightly modified track-rod end.
Potentially cheaper than a rod end and also uses Citroen parts
But as you suggest, discreet sections make it more complex to construct......................


Peter


December 27th, 2011, 3:20 pm
Profile
Firing on two.

Joined: January 16th, 2010, 5:15 pm
Posts: 212
Post Re: XMAS Quiz (Technical)
Hi Pete
rakeway in Cheadle have tapered reamers !

_________________


April 29th, 2013, 9:42 pm
