Transfer box.. A new version...
| Author |
Message |
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

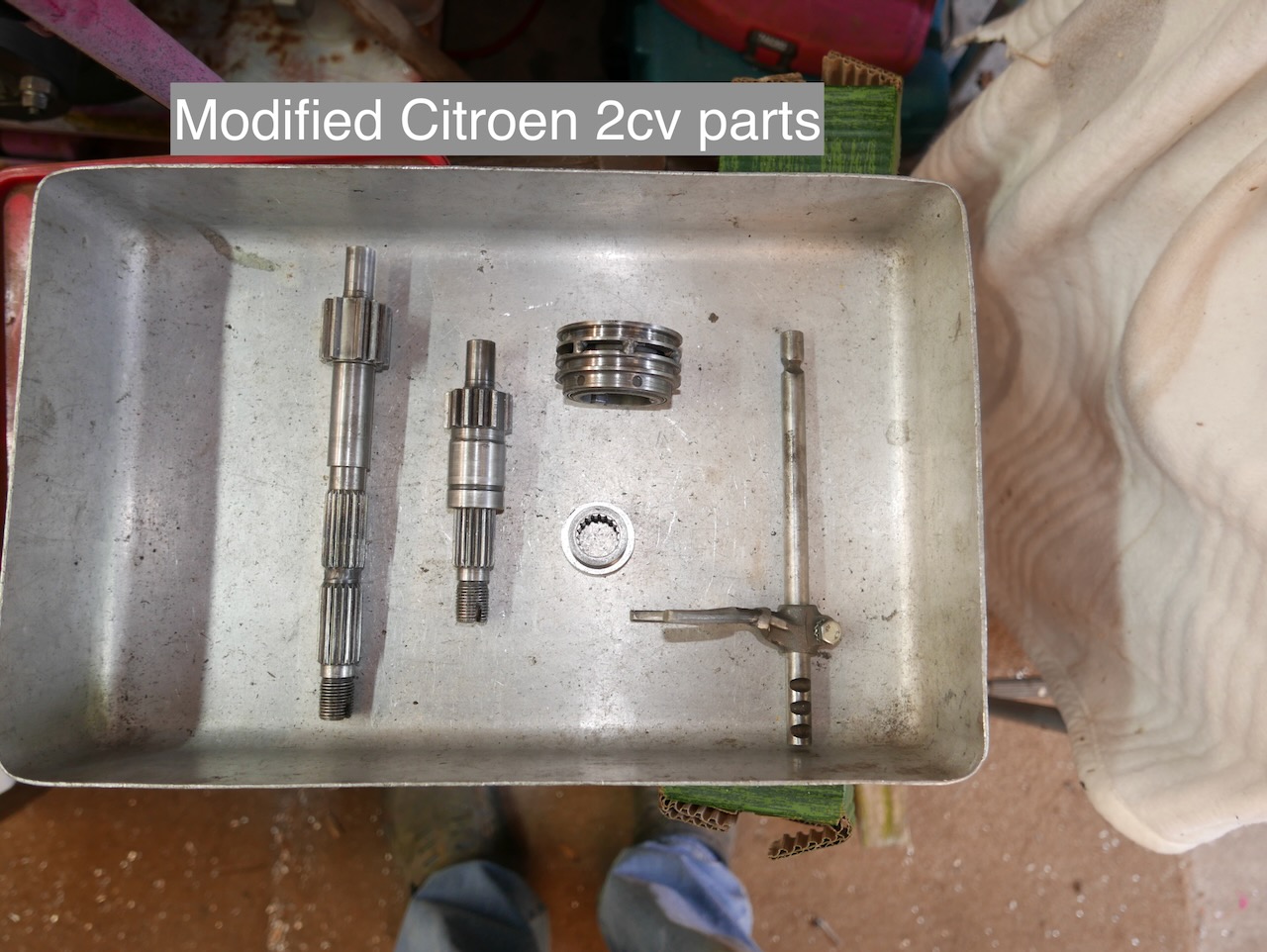

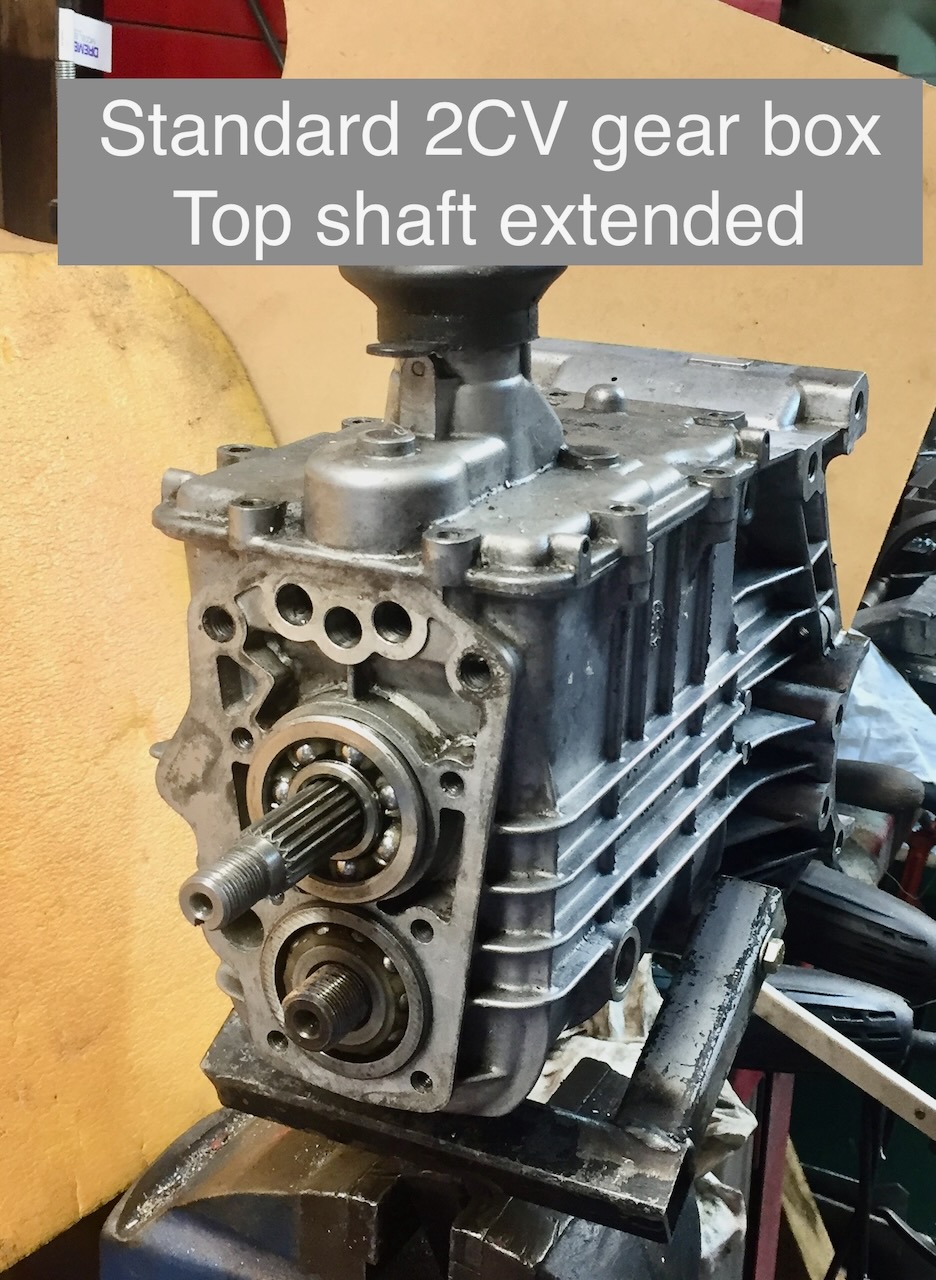

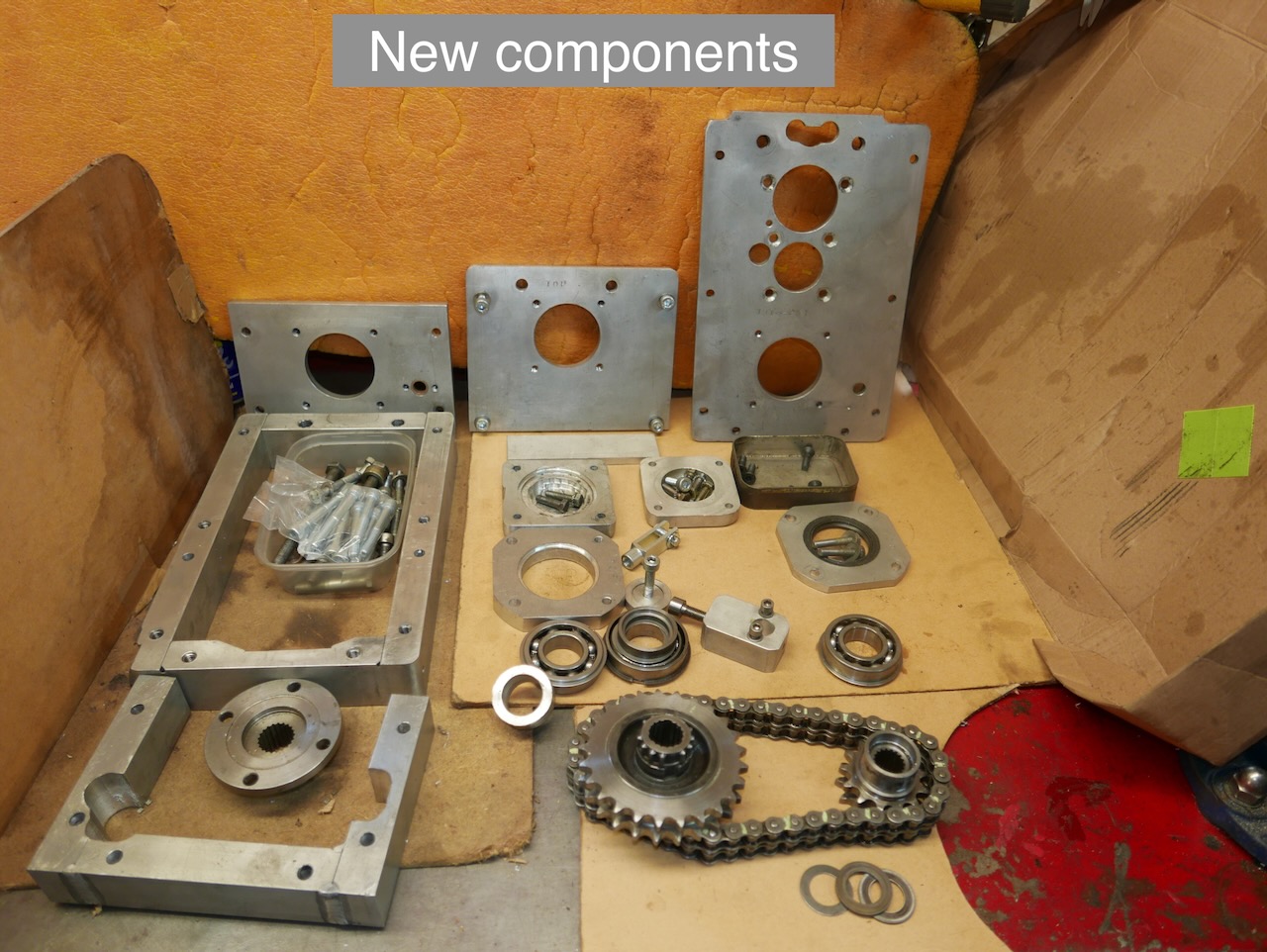

 Re: Transfer box.. A new version... The saga so far..... Standard parts, Modified Parts and new parts. The "new" parts not yet, necceassarly in the correct order  Some of the bits to do ... Oil Seal for selector rod, and (gear) lever for selector rod. Estimated additional total weight about 14Kg  Attachment:
IMG_1871.jpeg [ 345.01 KiB | Viewed 81094 times ]
Attachment:
P1010933.jpeg [ 262.16 KiB | Viewed 81094 times ]
Attachment:
P1010934.jpeg [ 295.83 KiB | Viewed 81094 times ]
|
| June 26th, 2024, 1:33 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

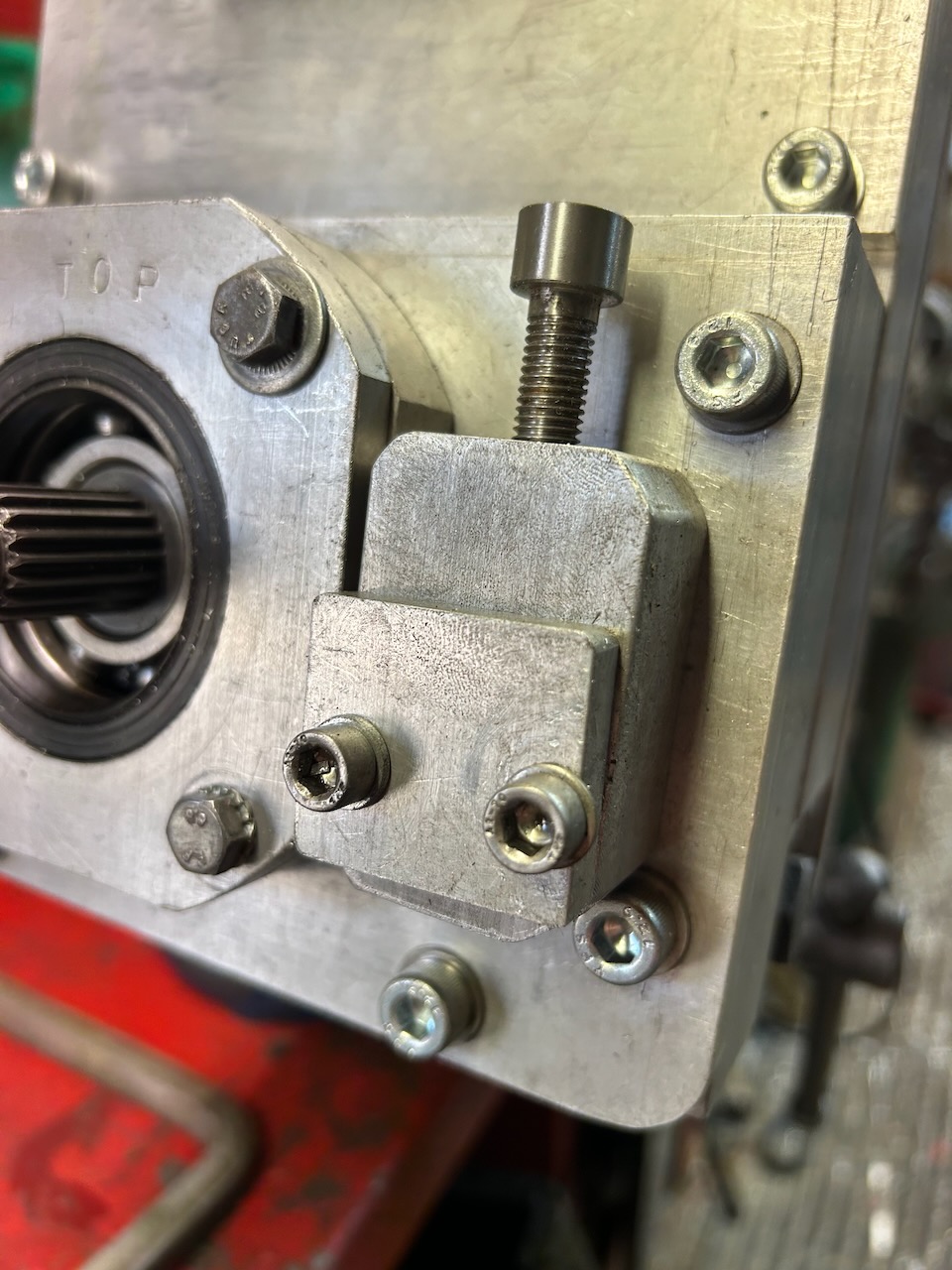

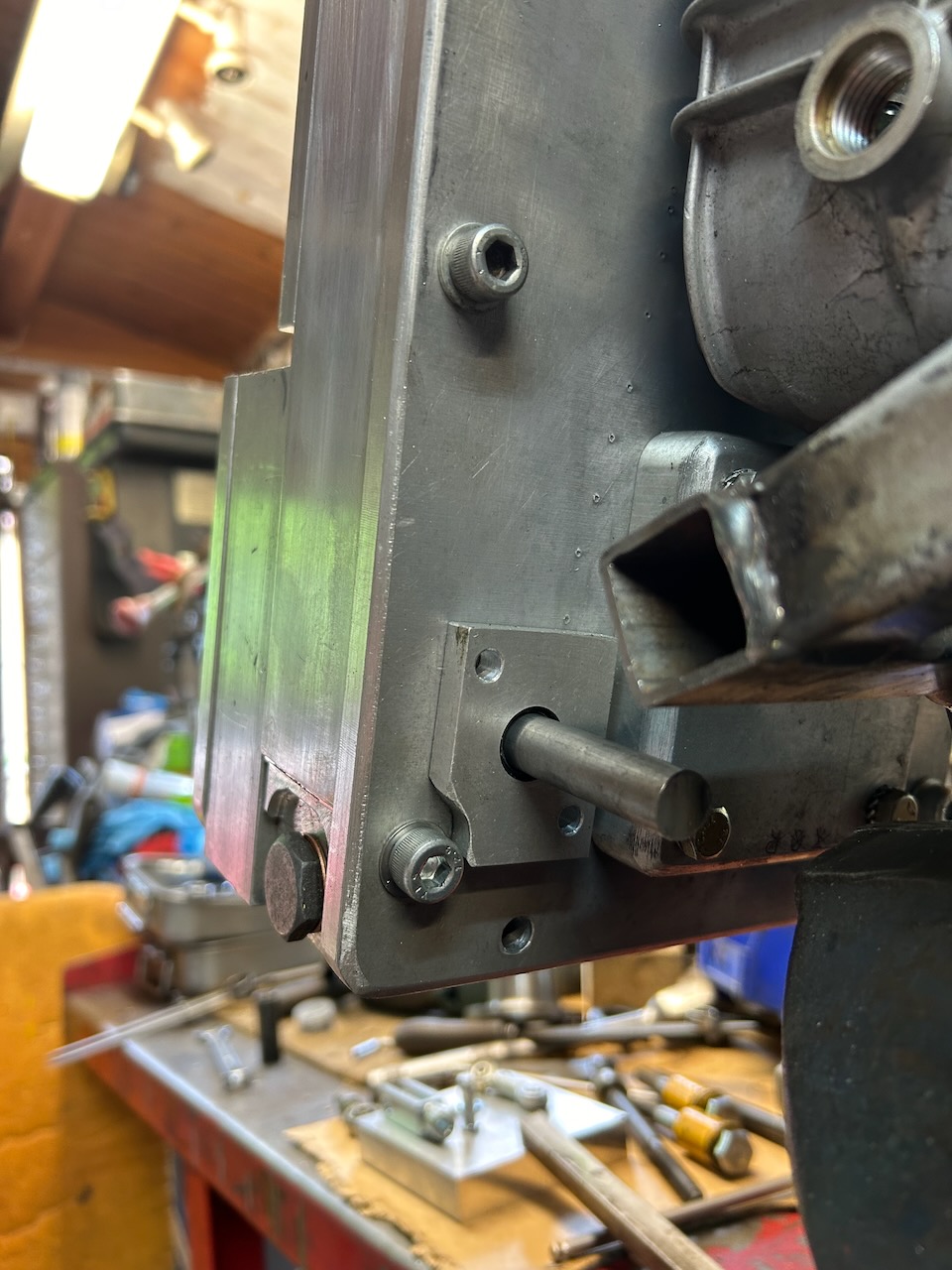

Re: Transfer box.. A new version... Selector rod parts. Seal and interlock. Attachment:
IMG_0010.jpeg [ 468.87 KiB | Viewed 81006 times ]
Attachment:
IMG_0014.jpeg [ 516.67 KiB | Viewed 81006 times ]
|
| July 2nd, 2024, 6:42 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

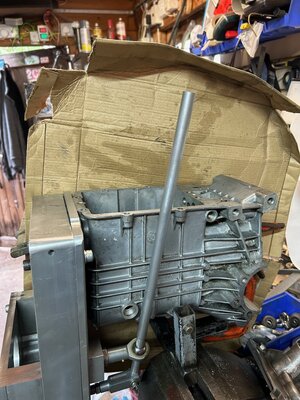

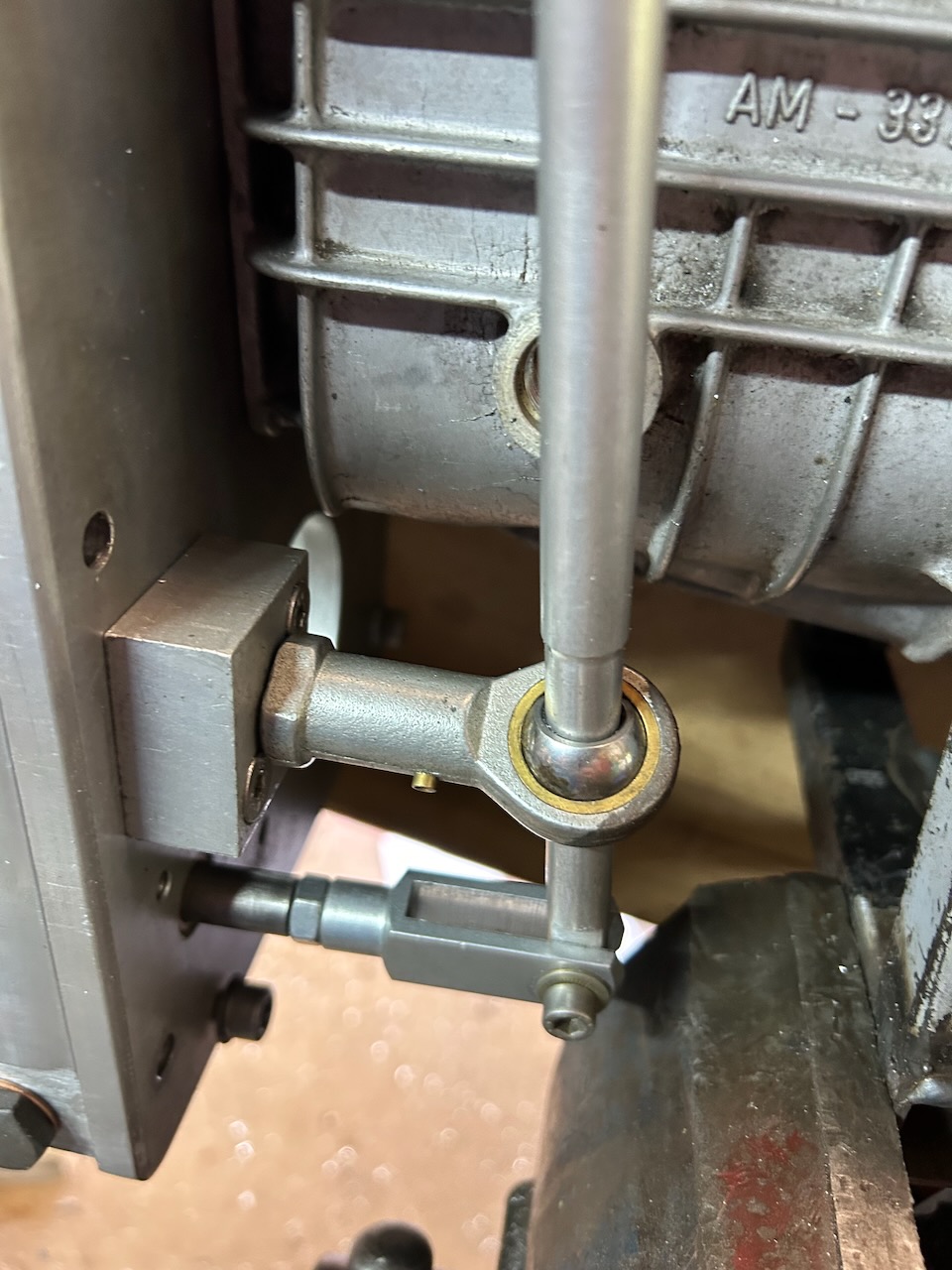

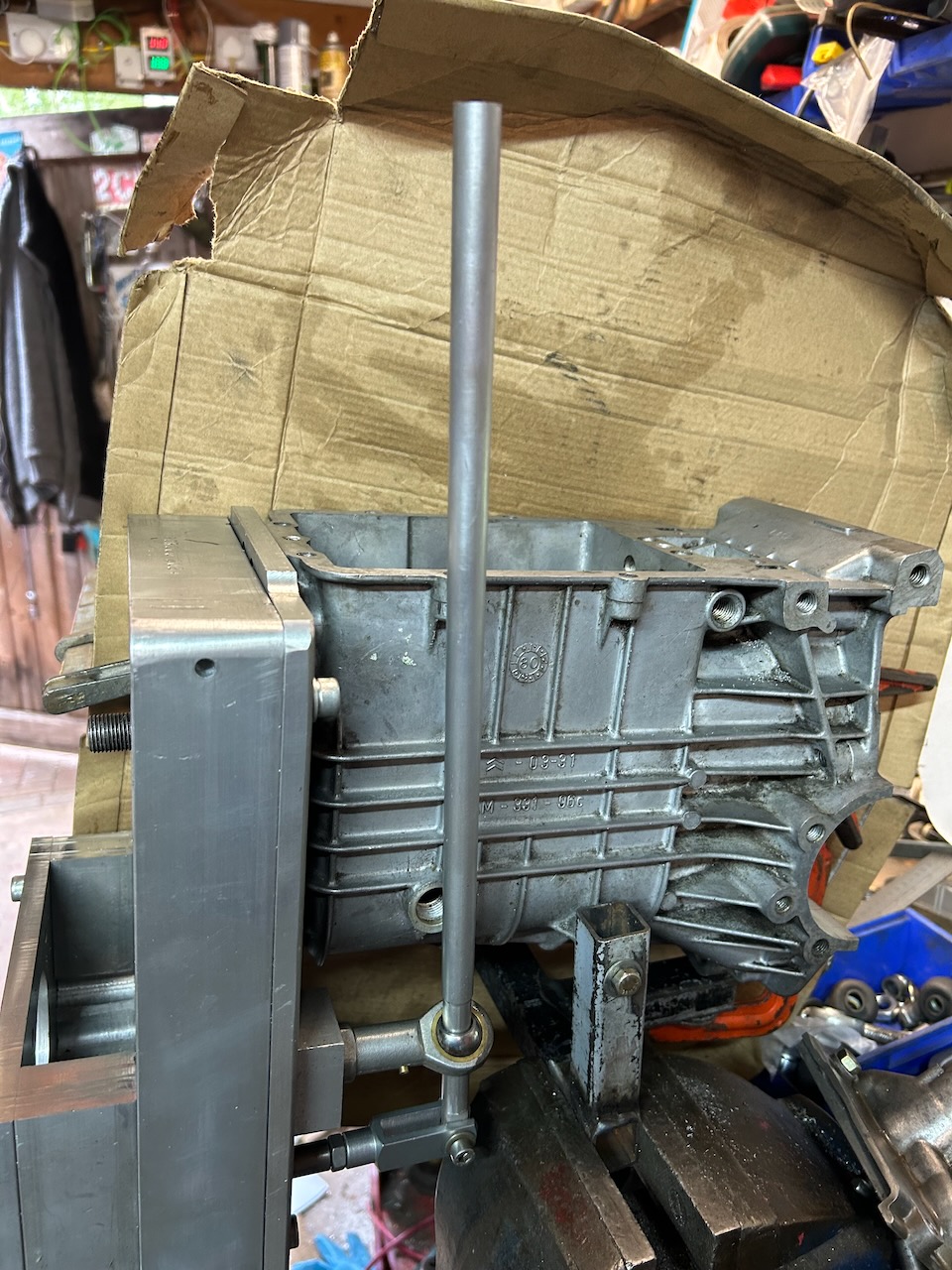

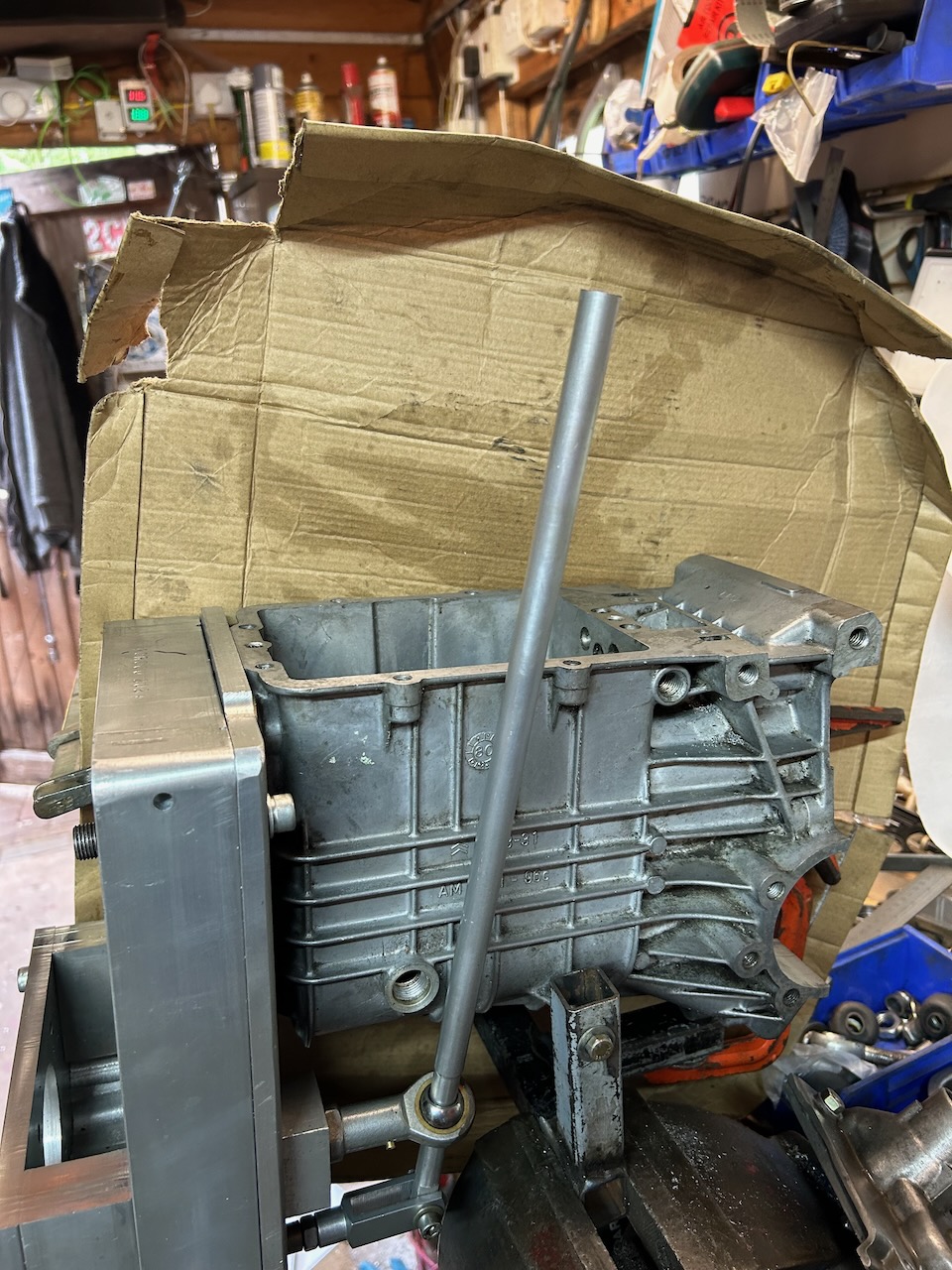

Re: Transfer box.. A new version... Selector Lever... Ouput Engaged. Attachment:
IMG_0027.jpeg [ 723.34 KiB | Viewed 80945 times ]

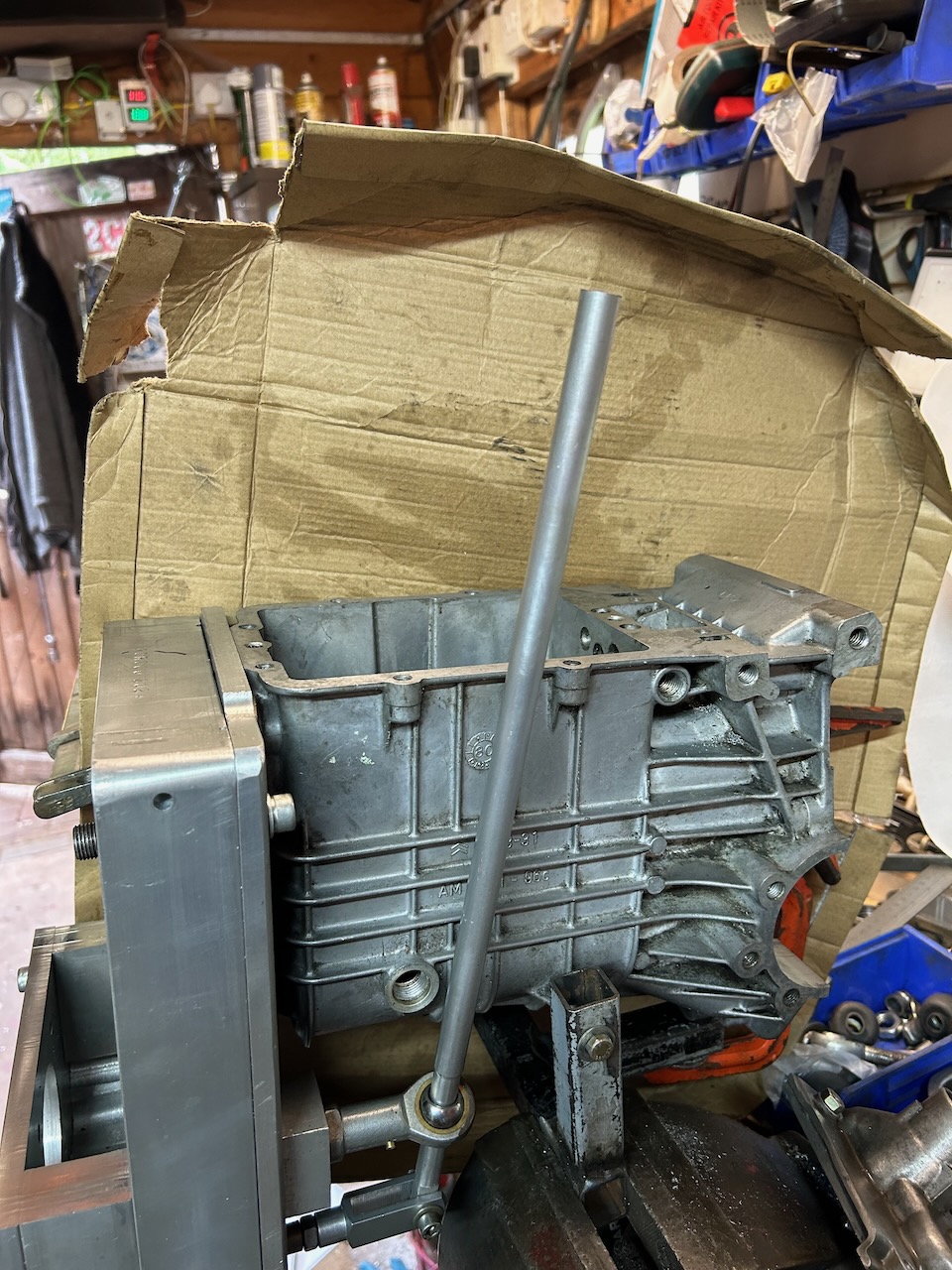

Output Disconnected. Attachment:
IMG_0028.jpeg [ 669.34 KiB | Viewed 80945 times ]
Access to Oil filler & level a bit comprimised Attachment:
IMG_0029.jpeg [ 463.86 KiB | Viewed 80945 times ]
|
| July 6th, 2024, 11:11 am |
|
|
|
jasu
Firing on two.
Joined: August 8th, 2012, 11:00 am
Posts: 508
Location: Korpilahti, Finland
|
Re: Transfer box.. A new version... Bend that lever. A tight bend just over the uniball, and another over filler plug to the direction desired. Problem solved..?
|
| July 6th, 2024, 1:57 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

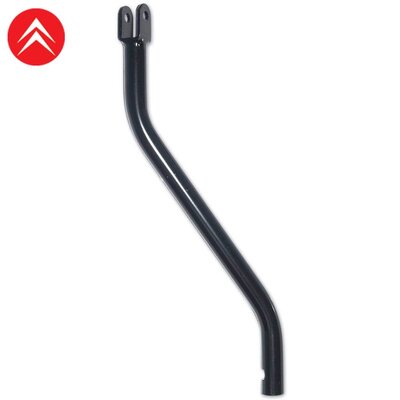

Re: Transfer box.. A new version... Feasable, also have a spare one of these Attachment:
3013200.jpg [ 36.43 KiB | Viewed 80933 times ]
|
| July 6th, 2024, 2:45 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|
Re: Transfer box.. A new version... Fits together but will it fit in the car? Attachment:
IMG_0051.jpeg [ 756.47 KiB | Viewed 80876 times ]
|
| July 8th, 2024, 12:10 pm |
|
|
|
Geert
Firing on two.
Joined: July 10th, 2010, 12:35 pm
Posts: 1203
Location: Magyarország
|
Re: Transfer box.. A new version... Fingers crossed !
_________________
'T is een kwestie van geduld.........
Ez a türelem kérdése.........
|
| July 8th, 2024, 2:14 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

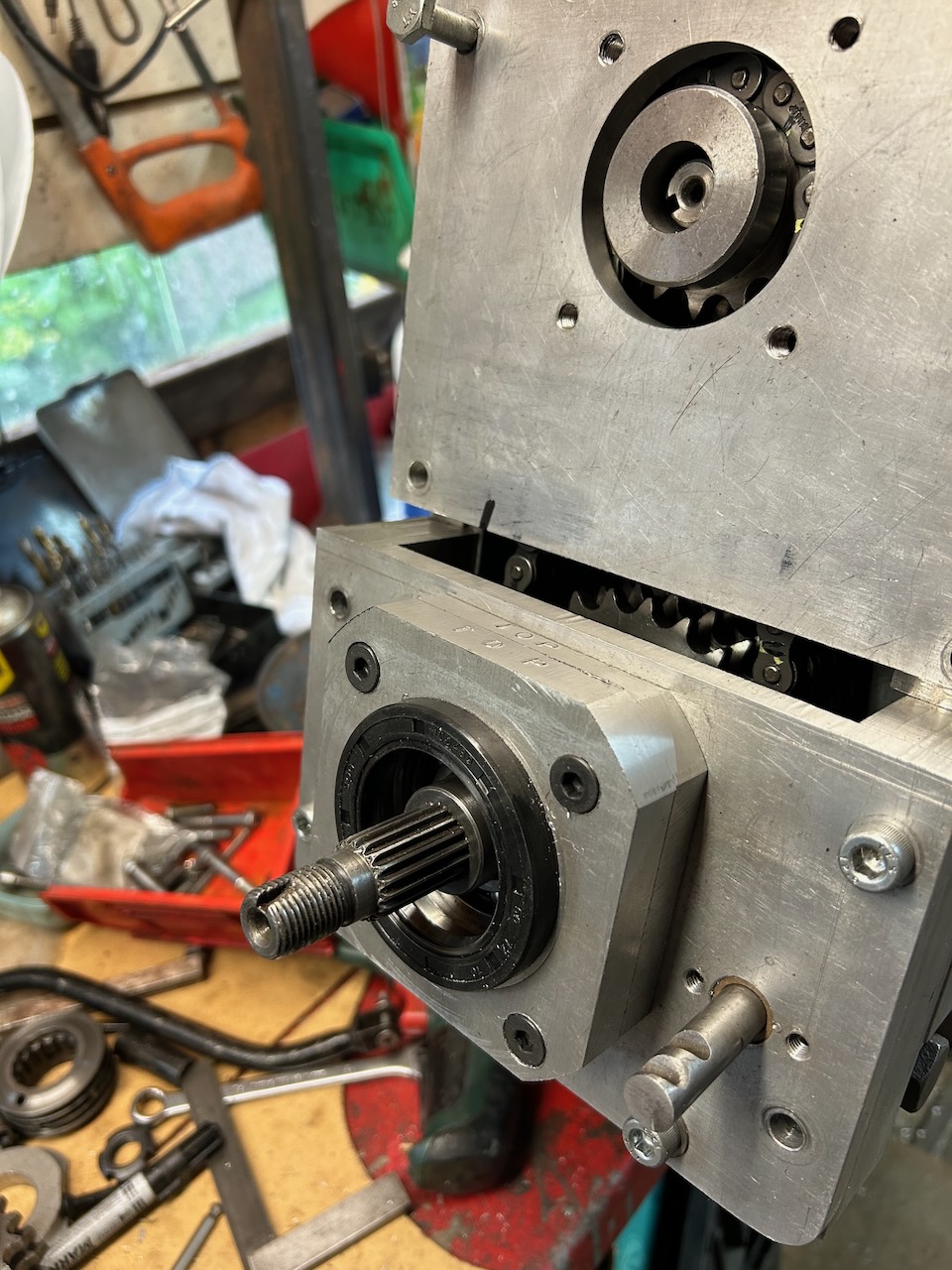

Re: Transfer box.. A new version... Re-made the Bearing retainer and oil seal holder, was somehow out of alignment Attachment:
IMG_0057.jpeg [ 646.21 KiB | Viewed 80677 times ]
|
| July 15th, 2024, 5:19 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

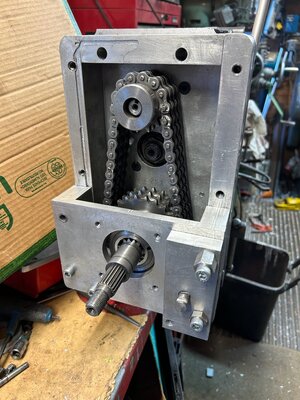

Re: Transfer box.. A new version... After some very careful measureing , I can fit a triplex chain and sprockets, whick only adds 5mm to the caseing depth. Had to redo the selector interlock....etc Attachment:
IMG_0059.jpeg [ 687.02 KiB | Viewed 80647 times ]
|
| July 16th, 2024, 8:41 pm |
|
|
|
subarupete
Firing on two.
Joined: March 5th, 2009, 6:23 pm
Posts: 2254
Location: Near Monmouth
|

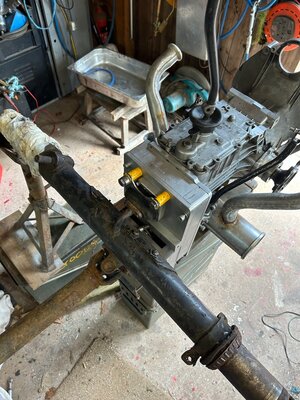

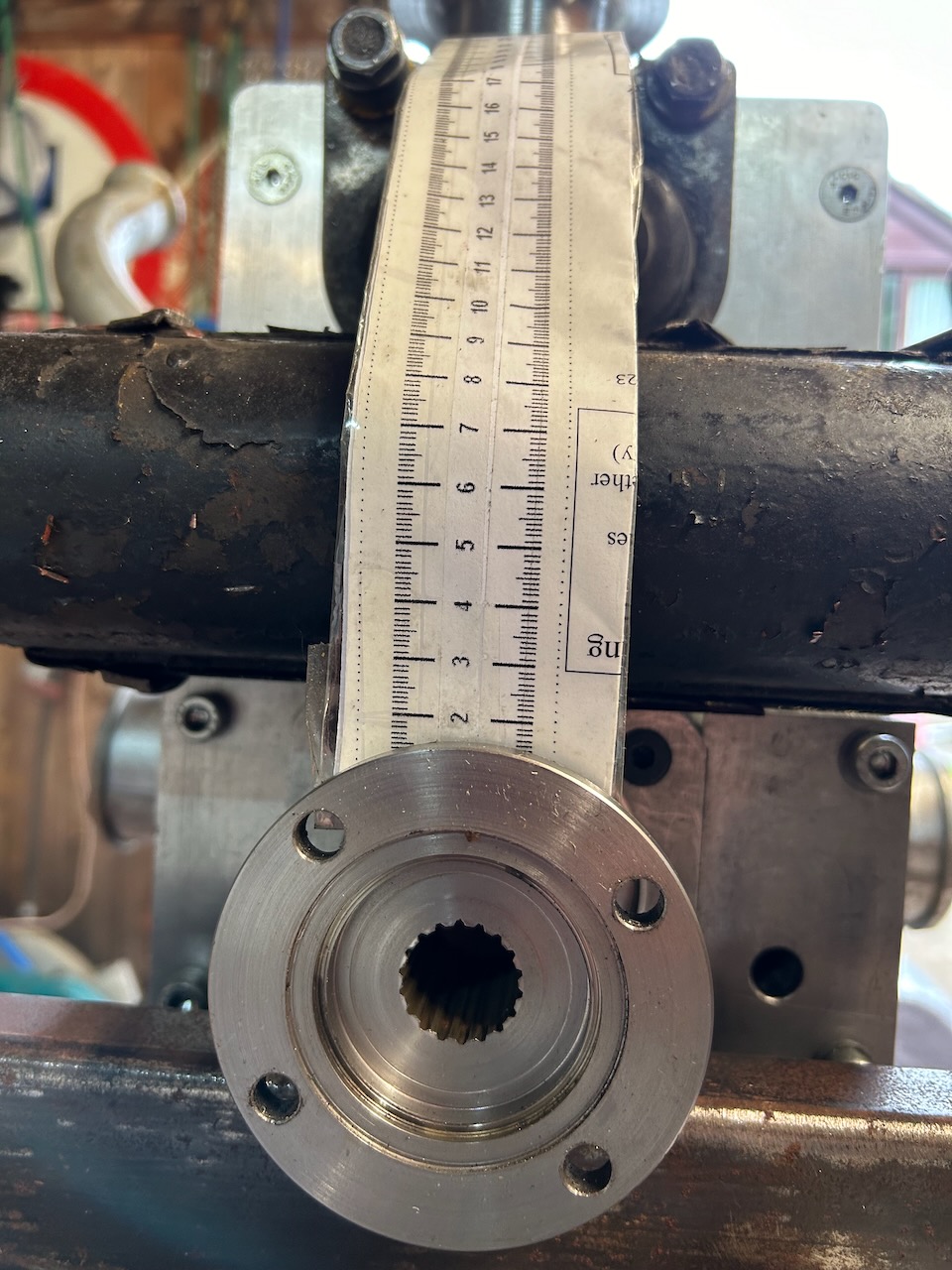

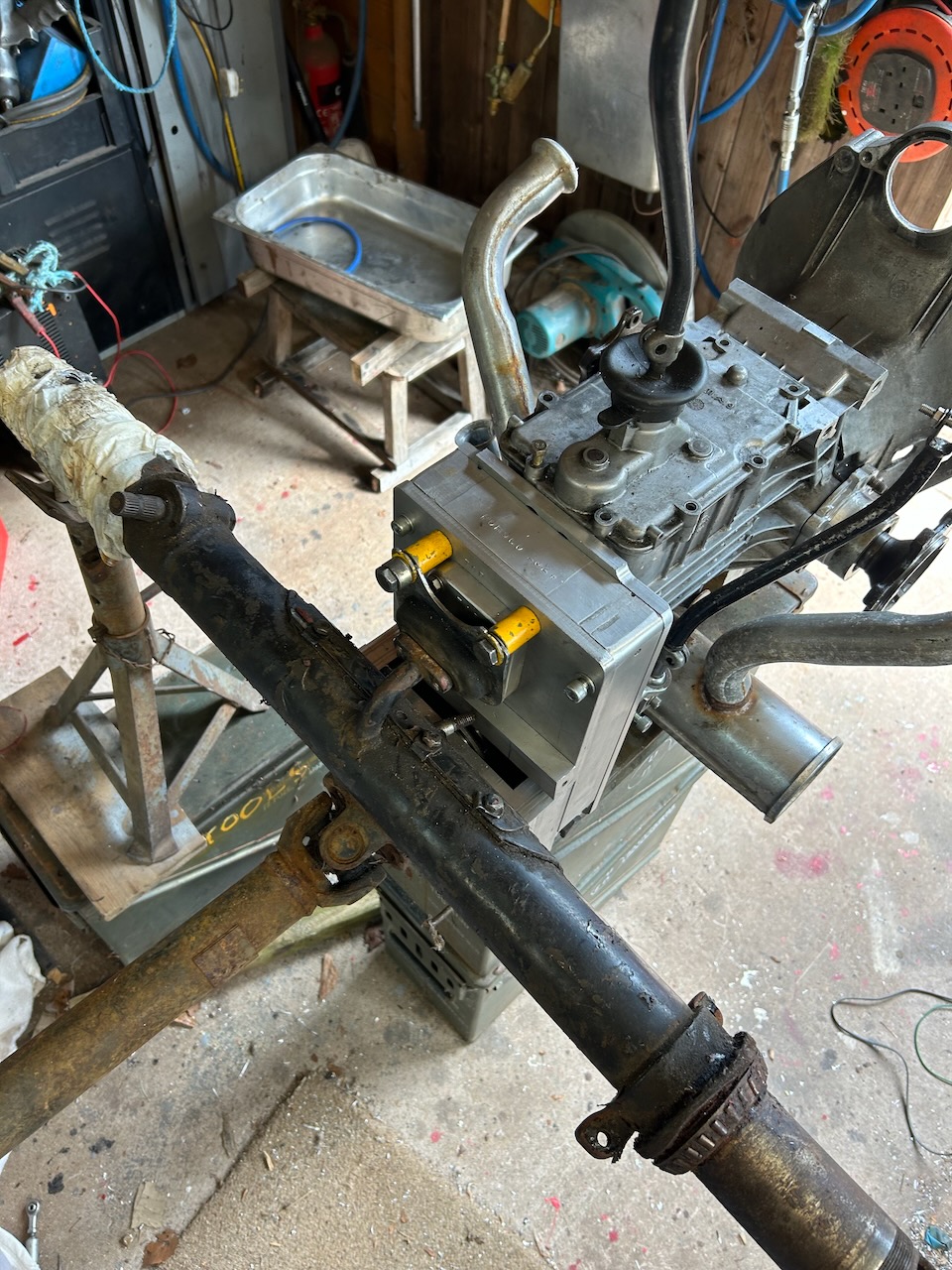

Re: Transfer box.. A new version... Trial fit with a a dummy chassis rail, its a very tight fit!! Attachment:
IMG_0076.jpeg [ 521.86 KiB | Viewed 80126 times ]

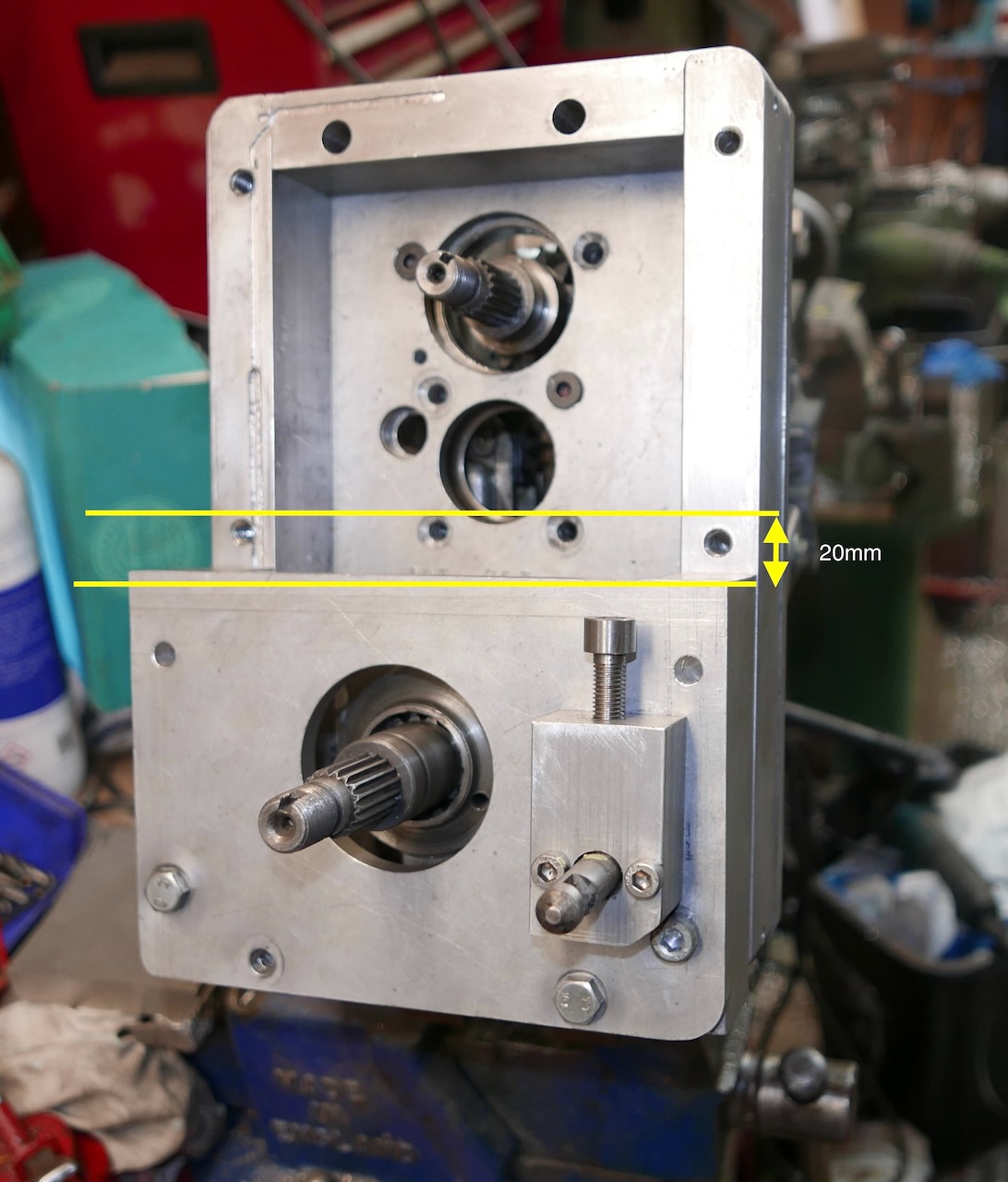

However if I reduce the height by "20mm" not so tight. Attachment:
P1010902.jpeg [ 217.77 KiB | Viewed 80126 times ]

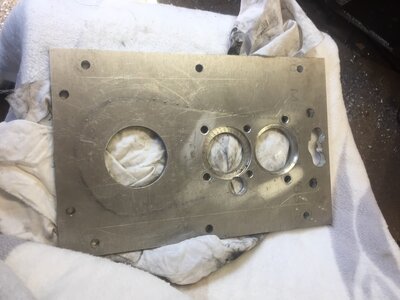

Means I have to make a new back plate:( Attachment:
IMG_1568 3 (1).jpeg [ 221.18 KiB | Viewed 80126 times ]
|
| July 30th, 2024, 10:51 am |
|
|
